Запчасти Case IH 9120 (10.103.01[02]) - CRANKSHAFT - 9120 (10) - ENGINE

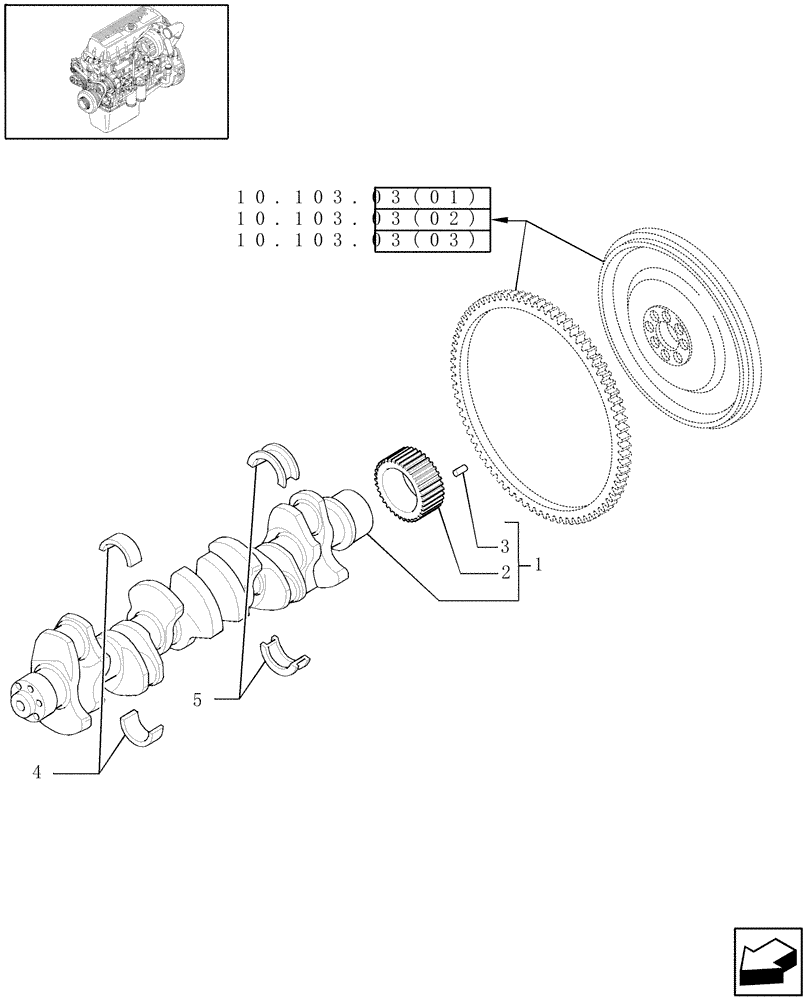

Схема запчастей Case IH 9120 - (10.103.01[02]) - CRANKSHAFT - 9120 (10) - ENGINE
5
3
10.103.03(02)
10.103.03(01)
10.103.03(03)
2
1
4

Артикул

Название

Примечание

Количество

1

99438979

CRANKSHAFT

1шт.

2

99437423

DRIVING GEAR

1шт.

3

10839610

DOWEL,M8 x 12mm

D = 8 mm

1шт.

4

2992137

SET OF STD MAIN BRGS

Red

1шт.

4

2992138

SET OF STD MAIN BRGS

Green

1шт.

4

2992139

BEARING SET

0.127 Red/Black

1шт.

4

2992140

BEARING SET

0.127 Green/Black

1шт.

4

2992141

SET OF MAIN BRGS-.25

Red

1шт.

4

2992142

SET OF MAIN BRGS -

Red

1шт.

5

2992143

SET OF THRUST WASHER

Red

1шт.

5

2992144

SET OF THRUST WASHER

Green

1шт.

5

2992146

SET OF THRUST WASHER

SET OF THRUST WASHERS +0.508

1шт.

5

2992145

SET OF THRUST WASHER

SET OF THRUST WASHERS +0.25

1шт.

Выбрано товаров: 13
