Запчасти Case IH 9120 (10.102.07) - OIL DRAIN LINES (10) - ENGINE

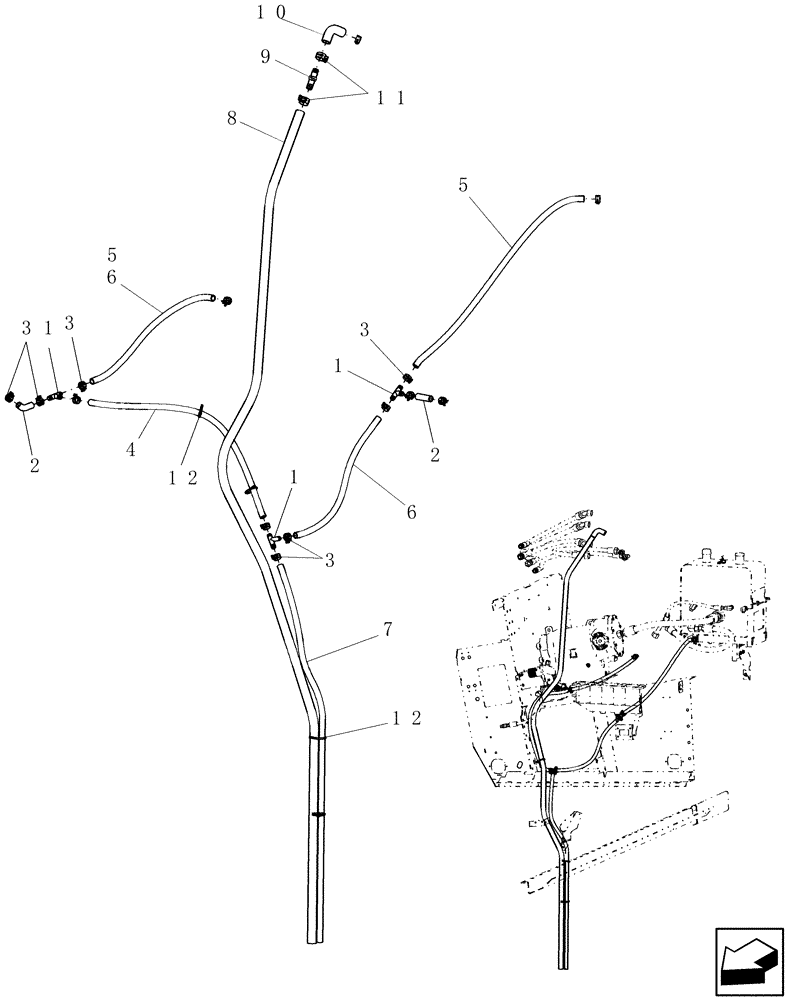

Схема запчастей Case IH 9120 - (10.102.07) - OIL DRAIN LINES (10) - ENGINE
5
8
1
3
3
10
1
3
2
7
6
12
6
11
2
5
1
12
4
9
3

Артикул

Название

Примечание

Количество

1

87107102

TEE,5/8" Barb

3шт.

2

1977295C1

TUBE

75 mm; From Valves on Rotor Gearbox and PTO Gearbox Oil Pan

2шт.

Order Per Foot, as Needed

1шт.

3

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

13шт.

4

1977295C1

TUBE

Drain; 1150 mm

1шт.

Order Per Foot, as Needed

1шт.

5

1977295C1

TUBE

Drain, 940 mm - From Valve on Hydraulic Oil Reservoir

1шт.

Order Per Foot, as Needed

1шт.

6

1977295C1

TUBE

Drain, 710 mm - (1) From Valve on Engine Oil Pan

2шт.

Order Per Foot, as Needed

1шт.

7

1977295C1

TUBE

Drain; 1500 mm

1шт.

Order Per Foot, as Needed

1шт.

8

87107435

HOSE,25.40 mm ID x 3350 mm

Drain; 900 mm

1шт.

Order Per Foot, as Needed

1шт.

9

87107557

FITTING

1шт.

8120 & 9120 Only

1шт.

10

84334134

HOSE,25mm ID x 69mm OAL

Elbow, From Breather Port on Engine

1шт.

8120 & 9120 Only

1шт.

11

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

Выбрано товаров: 20
