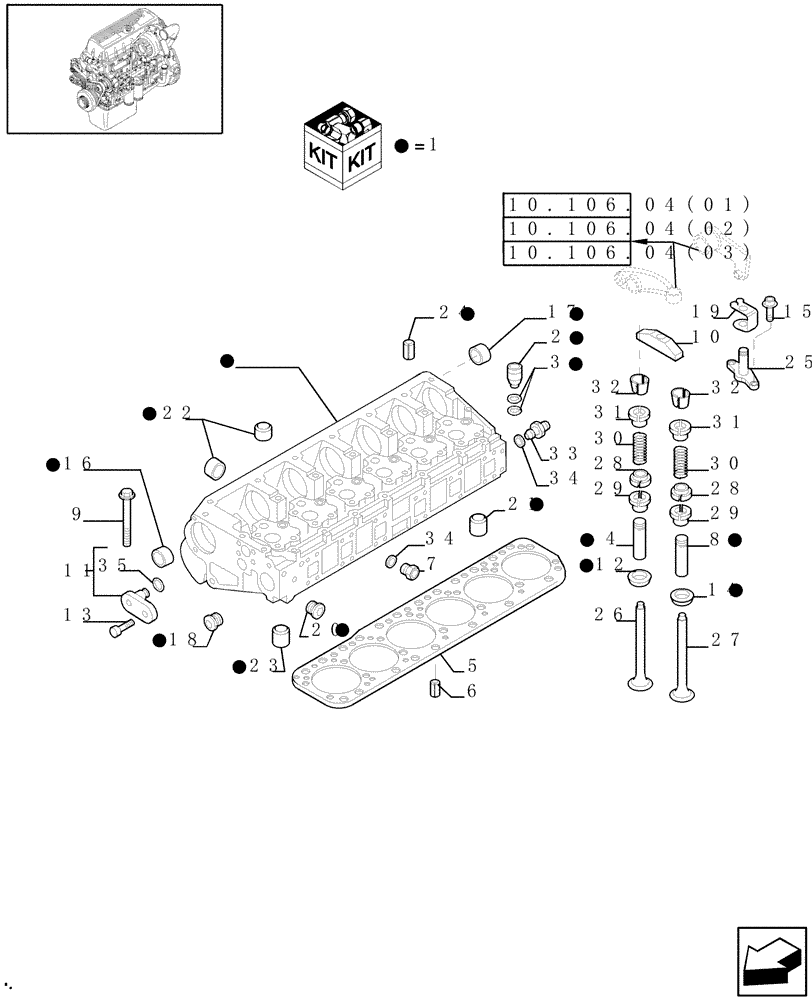

Запчасти Case IH 9120 (10.101.02[03]) - CYLINDER HEAD & RELATED PARTS - 9120 (10) - ENGINE

1

504021866

CYLINDER HEAD

1шт.

1

504021866R

REMAN-CYLINDER HEAD

9120 (9/08), Bare Head

1шт.

1

504021866C

CORE-CYLINDER HEAD

Return Number

1шт.

1

47507107R

REMAN-CYLINDER HEAD

9120 (9/08), Complete Head For Bare Head P/N's 504021866 and 504021866R

1шт.

1

47507107C

CORE-CYLINDER HEAD

Return Number

1шт.

2

99476929

CASE

6шт.

3

14454081

O-RING,1.051" ID x 0.07" Width

D = 26.7 x 1.7 mm

12шт.

4

500390993

INTAKE VALVE GUIDE

STD

12шт.

4

500390864

OVERSIZE INLET VALVE

+ 0,2

12шт.

4

500390866

OVERSIZE INLET VALVE

+ 0,4

12шт.

5

504007514

GASKET

Cylinder Head

1шт.

6

10839710

DOWEL,M10 x 15.00mm

D = 10 mm

2шт.

7

16992411

PLUG

M16 x 1.5

1шт.

8

500390994

EXHAUST VALVE GUIDE

STD

12шт.

8

500390860

VALVE, EXHAUST, OVER

+ 0,2

12шт.

8

500390861

VALVE, EXHAUST, OVER

+ 0,4

12шт.

9

504108192

SCREW,Flng, M18 x 2 x 196mm

20шт.

9

98495528

SCREW,Shldr, Hex Flg, M18 x 2 x 175mm

6шт.

10

504002605

CROSSRAIL

12шт.

11

500340761

PLUG

ASSY

1шт.

12

99450511

VALVE SEAT

STD

12шт.

12

504020517

VALVE SEAT

+ 0,20

12шт.

13

16586225

BOLT,M8 x 16mm

1шт.

14

99450512

VALVE SEAT

STD

12шт.

14

504020515

VALVE SEAT

+ 0,20

12шт.

15

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

M8 x 20

12шт.

16

504078222

BUSHING

6шт.

17

504078223

BUSHING

1шт.

18

14282170

PLUG,M20, Tapered, Stainless

12шт.

19

500376911

SPRING

6шт.

20

99430692

PLUG

1/2

1шт.

20

504182706

PLUG

1шт.

NA

1шт.

21

16991370

PLUG

D = 45 mm

2шт.

22

16990870

PLUG

D = 28 mm

13шт.

23

16990570

PLUG

D = 20 mm

12шт.

24

17257074

ROLL PIN

M6 x 18

1шт.

24

17255674

ROLL PIN

M5

1шт.

25

504001460

SPACER

6шт.

26

500355778

STD INLET VALVE

Inlet

12шт.

27

504080352

STD EXHAUST VALVE

12шт.

28

504107641

CUP

24шт.

29

40101874

SEALING RING

12шт.

30

504100000

SPRING

24шт.

31

98473050

COTTERS PLATE

24шт.

32

14196370

ROCKER ARM COTTER

48шт.

33

41031569

FITTING

1шт.

34

99489019

SEALING WASHER

D = 16 x 24 x1.5 mm

2шт.

35

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

D = 9.2 x 1.7 mm

1шт.
