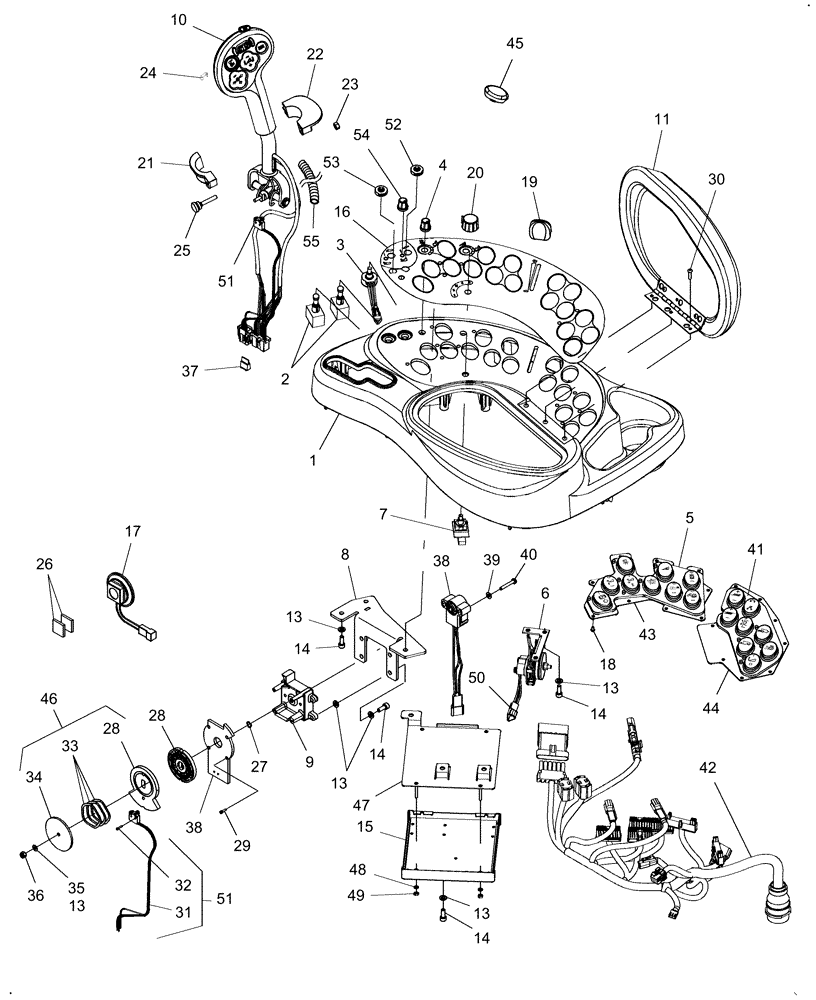

Запчасти Case IH 9120 (90.160.02[02]) - CONSOLE AND CONTROLS, R.H. (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87483994

CONSOLE

Complete Console Top Tray

1шт.

1

87393154

CONSOLE

1шт.

2

86997464

SWITCH

Feeder/ Separator Engagement/ Feeder Reverse

2шт.

3

86997465

POTENTIOMETER

Reel Speed/Feeder RPM (CVT)

1шт.

4

118780A1

KNOB

Console Control

1шт.

5

87106744

RUBBER PAD

1шт.

6

86995126

THROTTLE

Control

1шт.

7

86525096

SWITCH ASSY

Gear Shift

1шт.

8

NS

NOT SERVICED

Bracket

1шт.

9

87109134

BASE

1шт.

10

87596219

JOYSTICK

With Edge Guidance / Autopilot Steering

1шт.

11

86995956

ARMREST

& Hinge

1шт.

11

87718946

HINGE

Only

1шт.

12

87109133

PLATE

Stop, Friction

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

18шт.

14

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

13шт.

15

87521010

MODULE

1шт.

87521010R

REMAN-MODULE

7120 (9/08-2/12), 8120, 9120 Both (9/08-)

1шт.

87521010C

CORE-MODULE

Return Number

1шт.

16

87376151

DECAL

1шт.

17

86998255

SPEAKER

1шт.

18

86977872

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/4"

17шт.

19

87105681

KNOB

EH Control Lever

1шт.

20

86622310

KNOB

1шт.

21

86997341

SUPPORT

L.H.

1шт.

22

86997342

SUPPORT

R.H.

1шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

24

86618564

CLIP

1шт.

25

86618563

KNOB

1шт.

26

PL

PROCURE LOCALLY

Adhesive, Dual Lock

2шт.

27

87107953

WAVE WASHER

Wave

1шт.

28

NS

NOT SERVICED

Cam

1шт.

30

340-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

3шт.

29

87107955

HEX SOC SCREW,Torx, #4 - 40 x 3/8", Patch

Cap, Socket Hd, #4-40 x 3/8

4шт.

31

87107957

SWITCH

Neutral

1шт.

32

87107958

SCREW,Pan, #2 - 56 x 0.50mm

Pan Hd, #2-56 x .50

2шт.

33

86975889

WAVE WASHER

Wave

3шт.

34

87107960

PLATE

Stop

1шт.

35

87107961

WASHER

Flat, #10

1шт.

36

87107962

LOCK NUT

1шт.

37

87107963

LOCK

1шт.

38

87045052

POTENTIOMETER,5 VDC

Hydro Control Handle Potentiometer

1шт.

38

87109133

PLATE

Friction Stop Plate

1шт.

39

87108107

WASHER

#10

2шт.

40

87282487

SCREW,Pozidrive, Pan HD, #10 - 32 x 1-1/4"

Torx

2шт.

41

87282484

RUBBER PAD

Required on all Dual Speed Rear Axle

1шт.

42

87633917

WIRE HARNESS

Console, R.H.

1шт.

43

87107589

KEYBOARD

Pad, Front, R.H. Console; Includes Ref 5 & 43

1шт.

44

87282485

SWITCH

Pad, Rear, R.H. Console; Includes Ref 41 & 44

1шт.

45

86997284

CAP

Cover

1шт.

46

87284702

KIT

Plates, Friction - Includes Ref 13, 28, 33, 34 & 36

1шт.

47

NS

NOT SERVICED

Bracket, RHM

1шт.

48

140024

LOCK WASHER,M4

4шт.

49

100012

NUT,M4 x 0.7, Cl 8

4шт.

50

87282573

KIT

1шт.

51

87282657

KIT

Neutral Switch with Wires, Includes Ref 31 & 32

1шт.

52

87327317

PLASTIC PLUG

1шт.

53

87327317

PLASTIC PLUG

1шт.

54

87570112

PLUG

1шт.

55

87582997

FOAM INSULATION

1шт.
