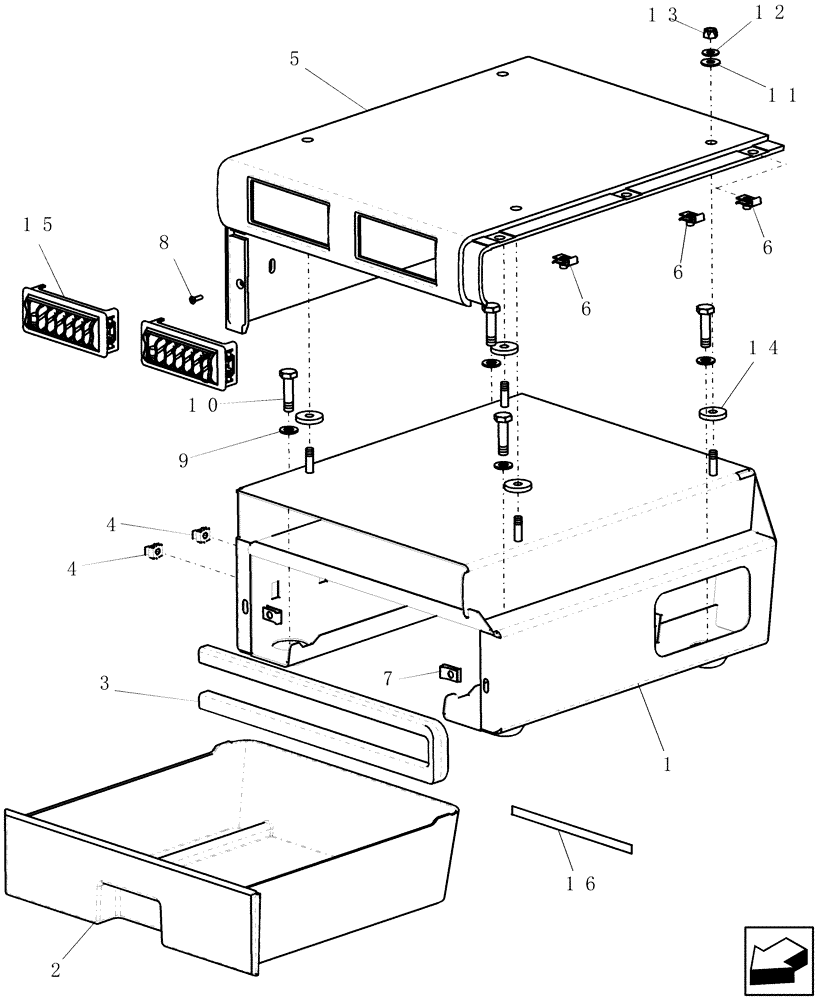

Запчасти Case IH 9120 (90.120.08) - SEAT, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87281315

SUPPORT

1шт.

2

87281323

HOLDER

Drawer

1шт.

3

87283661

SEAL

1шт.

4

84432090

NUT,M6

Cage

2шт.

5

87281385

COVER

R.H.

1шт.

6

86014250

SPRING NUT,M6 x 1.0

3шт.

7

9628100

NUT,M4 x 0.7

1шт.

8

87342920

PLUG

1шт.

9

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

11

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

13

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

14

87283653

SPACER

4шт.

15

87281670

VENT

Louver

2шт.

16

PL

PROCURE LOCALLY

TAPE, Magnetic

1шт.
