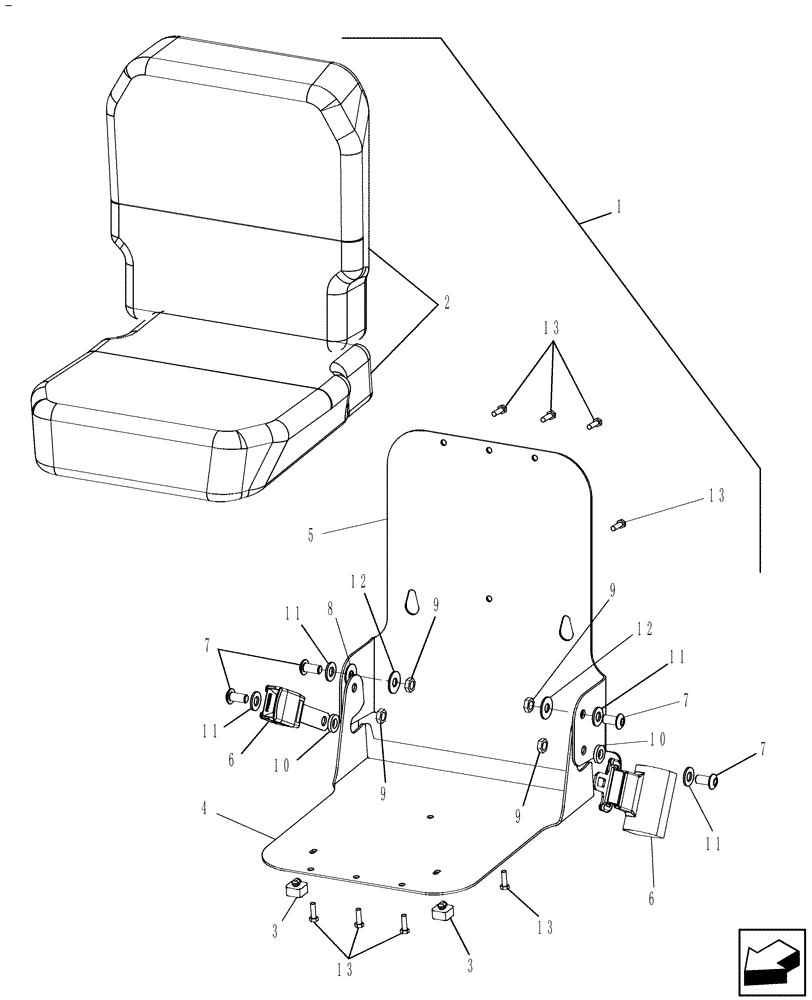

Запчасти Case IH 9120 (90.120.04) - SEAT COMPONENTS, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87685205

SEAT ASSY.

Incl Refs 2 Thru 13

1шт.

2

84120475

CUSHION

Wheat

2шт.

3

276467

BUMPER

2шт.

4

84141626

BRACKET

Bottom

1шт.

5

84141623

BRACKET

Back

1шт.

6

84120502

KIT

Seat Belt; Includes Belt, Receiver, & Mounting Hardware

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Btn Hd Skt, M12 x 1.75 x 20 mm

4шт.

8

NSS

NOT SOLD SEPARAT

Washer, M12

4шт.

9

NSS

NOT SOLD SEPARAT

Nut, Lock, M12 x 1.75

4шт.

10

NSS

NOT SOLD SEPARAT

Washer, .532 ID x 1.00 x 0.177 Thk

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, .531 ID x 1.062 x 0.16 Thk

4шт.

12

NSS

NOT SOLD SEPARAT

Washer, .500 ID x 1.25 x 0.08 Thk

2шт.

13

NSS

NOT SOLD SEPARAT

Bolt, HH, 1/4-20 UNC x .87 Lg

8шт.
