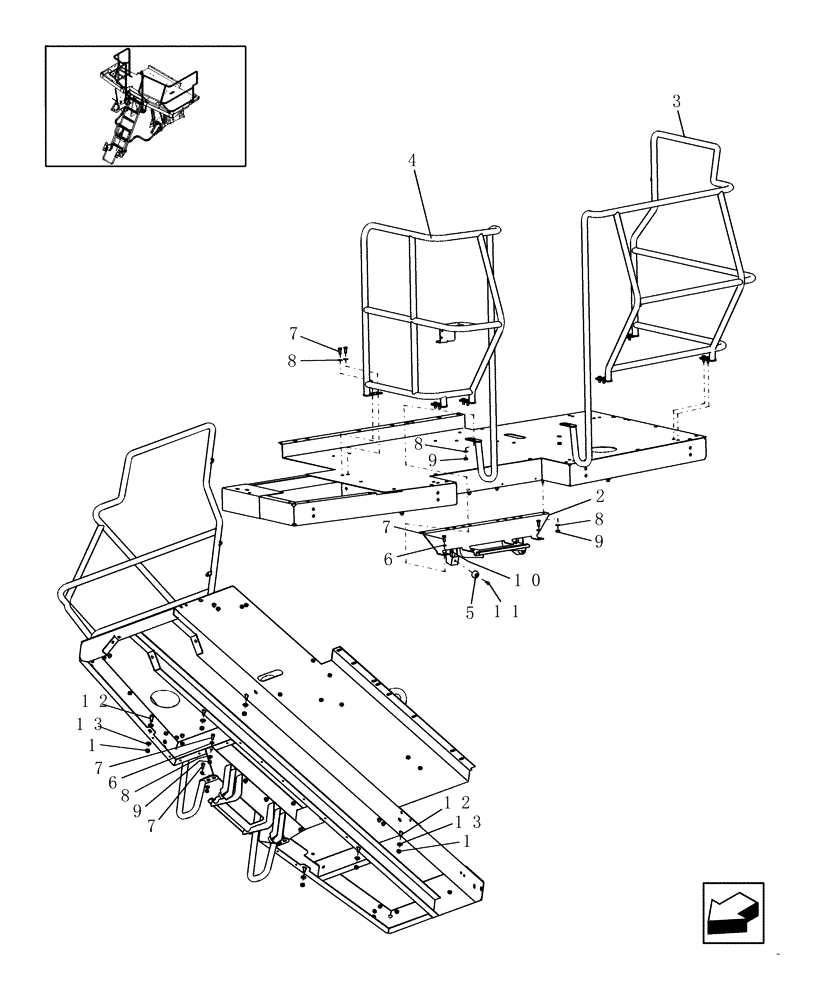

Запчасти Case IH 9120 (90.118.43[02]) - RAILING, REAR - 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9706685

NUT,M12 x 1.75, Cl 8

6шт.

2

87700647

STEP

1шт.

3

87728311

HANDRAIL

Rear Deck, R.H.

1шт.

4

87673787

HANDRAIL

Rear Deck, L.H.

1шт.

5

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

18шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

9

100016

NUT,M10 x 1.5, Cl 8

6шт.

10

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

11

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.
