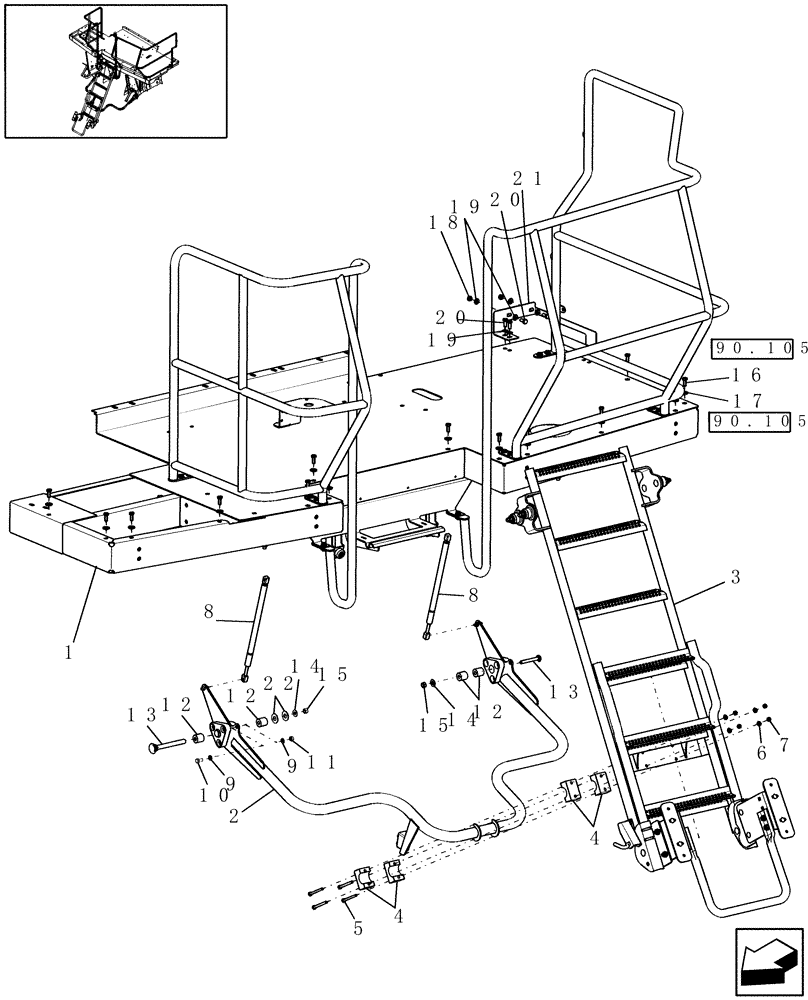

Запчасти Case IH 9120 (90.118.41[02]) - DECK, REAR - 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87591924

PLATFORM ASSY.

Deck, Rear

1шт.

2

87746846

ARM ASSY.

1шт.

3

87591939

LADDER

1шт.

4

87630671

BLOCK ASSY.

Pivot

2шт.

5

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

9706690

NUT,M8 x 1.25, Cl 8

4шт.

8

47360439

GAS STRUT

2шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

1шт.

12

87000413

BUSHING,12.7mm ID x 31.75mm OD x 32mm L

4шт.

13

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

PREV Torque, M8 x 25 Full Thd

14шт.

17

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

14шт.

18

86500689

NUT,M10 x 1.5, Cl 10

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

21

87475031

BRACKET

1шт.

22

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

2шт.
