Запчасти Case IH 9120 (90.118.23[02]) - SHIELDS, LOWER, R.H. STANDARD THREAD, INCLUDES NEW LOWER SHIELDING FOR NEW NARROW TIRES (90) - PLATFORM, CAB, BODYWORK AND DECALS

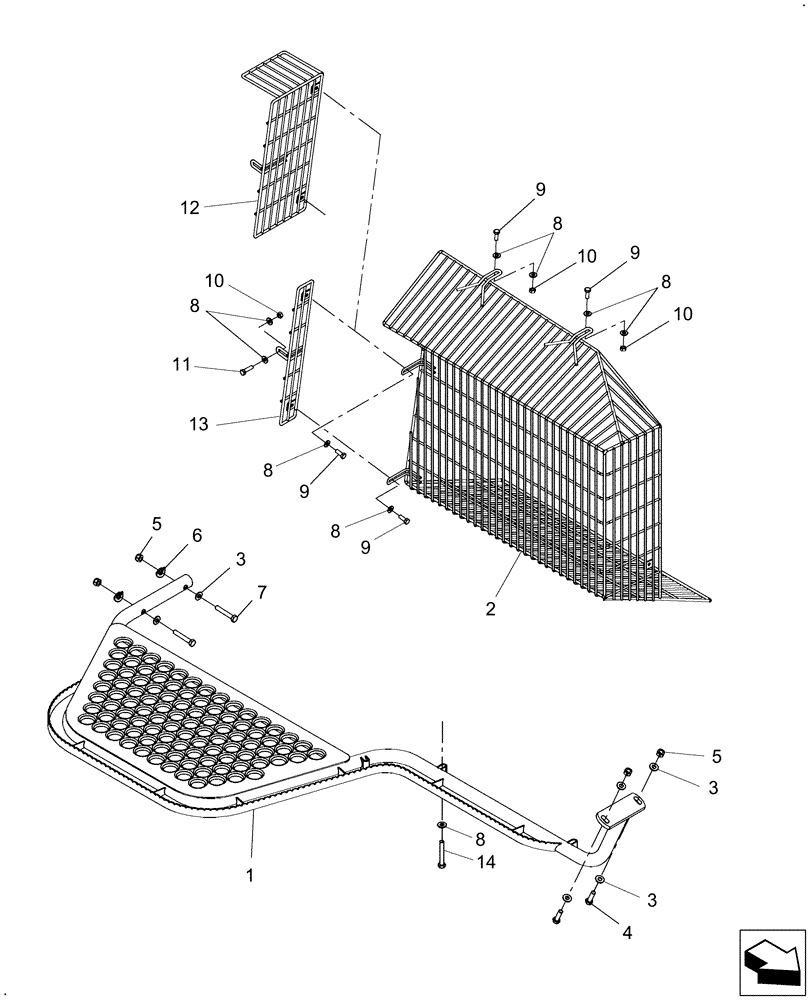

Схема запчастей Case IH 9120 - (90.118.23[02]) - SHIELDS, LOWER, R.H. STANDARD THREAD, INCLUDES NEW LOWER SHIELDING FOR NEW NARROW TIRES (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
10
10
12
14
9
9
8
3
8
8
13
5
9
10
8
5
2
9
8
8
7
1
4
3
3
6

Артикул

Название

Примечание

Количество

1

87475046

PLATFORM ASSY.

, Serial Range: -Y9G207255

1шт.

1

84194652

PLATFORM ASSY.

, Start Serial: Y9G207255

1шт.

For Narrow Tire Offering

1шт.

2

87492002

SHIELD

W/ Narrow Tire Option Only, Serial Range: -Y9G207255

1шт.

2

84194661

SHIELD

W/ Narrow Tire Option Only, Start Serial: Y9G207255

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

379401

WASHER,11mm ID x 30mm OD

2шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

9

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

4шт.

10

9706690

NUT,M8 x 1.25, Cl 8

3шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

12

87562320

SPLASH SHIELD

1шт.

7120 Only|1|7120 Only

1шт.

13

87562329

SPLASH SHIELD

1шт.

8120 & 9120 Only

1шт.

14

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 19
