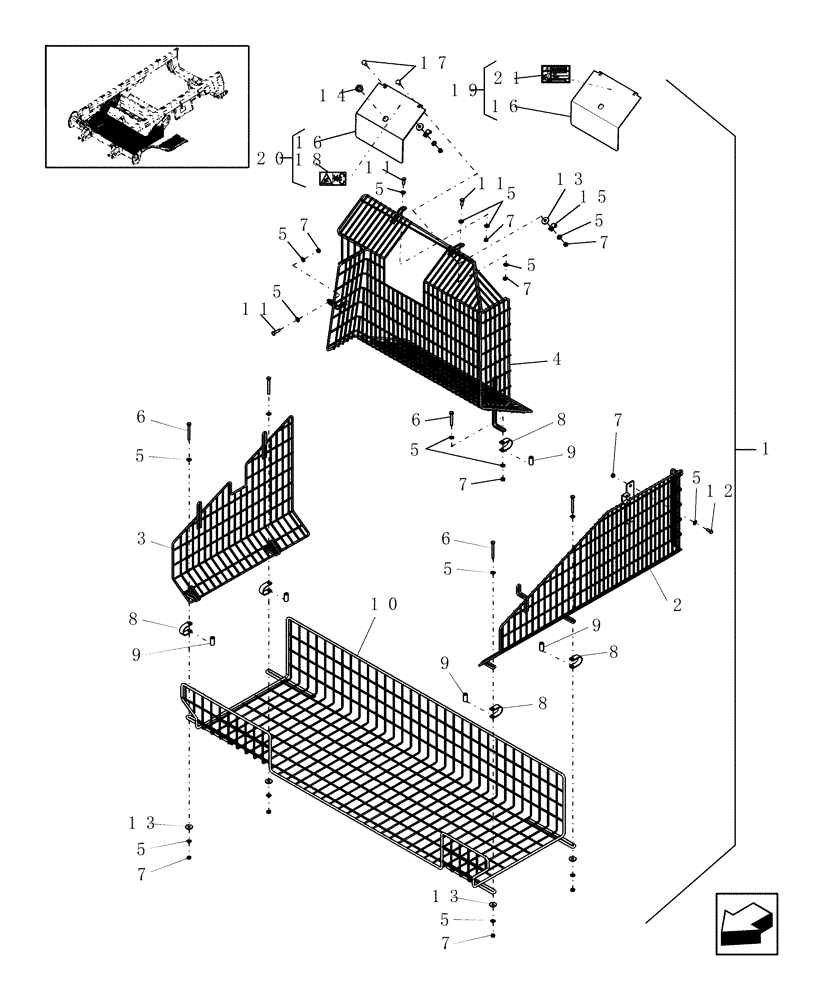

Запчасти Case IH 9120 (90.115.10) - KIT, FAN SHIELD - 8120/8120(LA), 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84083562

DIA KIT, HARVESTER

Fan Shield; Incl Refs 2 Thru 21, As Indicated

1шт.

For NA Only

1шт.

1

84083563

DIA KIT, HARVESTER

Fan Shield; Incl Refs 2 Thru 20, As Indicated

1шт.

EU Only

1шт.

1

84083564

DIA KIT, HARVESTER

Fan Bottom Shield; Incl Refs 3 & 10, Plus Hdw

1шт.

2

87283331

SHIELD

L.H.

1шт.

3

87283014

SHIELD

R.H., Front

1шт.

4

87284191

SHIELD

Incl Cover, Ref 19

1шт.

For NA Only

1шт.

4

87284192

SHIELD

Incl Cover, Ref 20

1шт.

EU Only

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

6

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

5шт.

7

9706690

NUT,M8 x 1.25, Cl 8

11шт.

8

87283569

STRAP

5шт.

9

87283567

BUSHING

5шт.

10

87283016

SHIELD

Bottom

1шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

14

143347A1

LATCH

1шт.

15

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

87318426

SHIELD

1шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

84011345

DECAL

1шт.

19

87323909

SHIELD

Incl 86626958

1шт.

For NA Only

1шт.

20

87323910

SHIELD

Incl 84011345

1шт.

EU Only

1шт.

21

86626958

WARNING DECAL

English

1шт.
