(90.110.11) - PANELS, REAR - EU - 7120, 8120, 9120

Запчасти Case IH 9120 (90.110.11) - PANELS, REAR - EU - 7120, 8120, 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

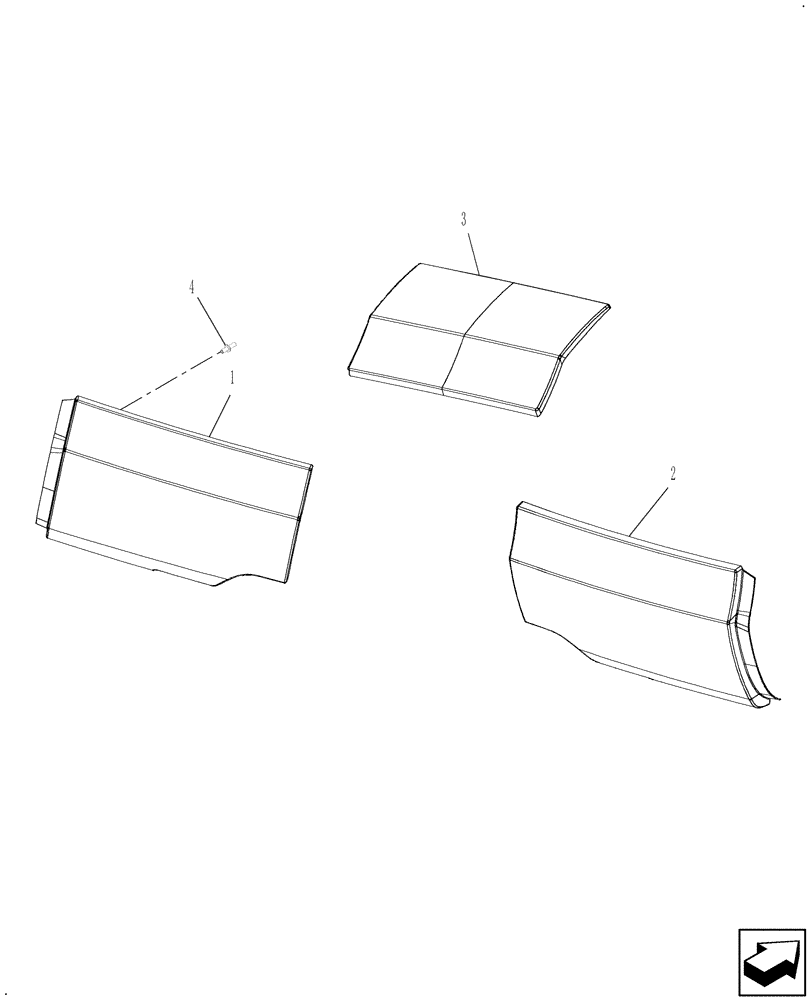

Схема запчастей Case IH 9120 - (90.110.11) - PANELS, REAR - EU - 7120, 8120, 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87688623

PANEL ASSY.

L.H.; Includes Ref 4(5)

1шт.

2

87688625

PANEL ASSY.

R.H.; Includes Ref 4(5)

1шт.

3

87628200

SHIELD

Center; Includes Ref 4(4)

1шт.

4

449901A1

STUD,M8 x 1.25 x 37.5mm OAL

14шт.
