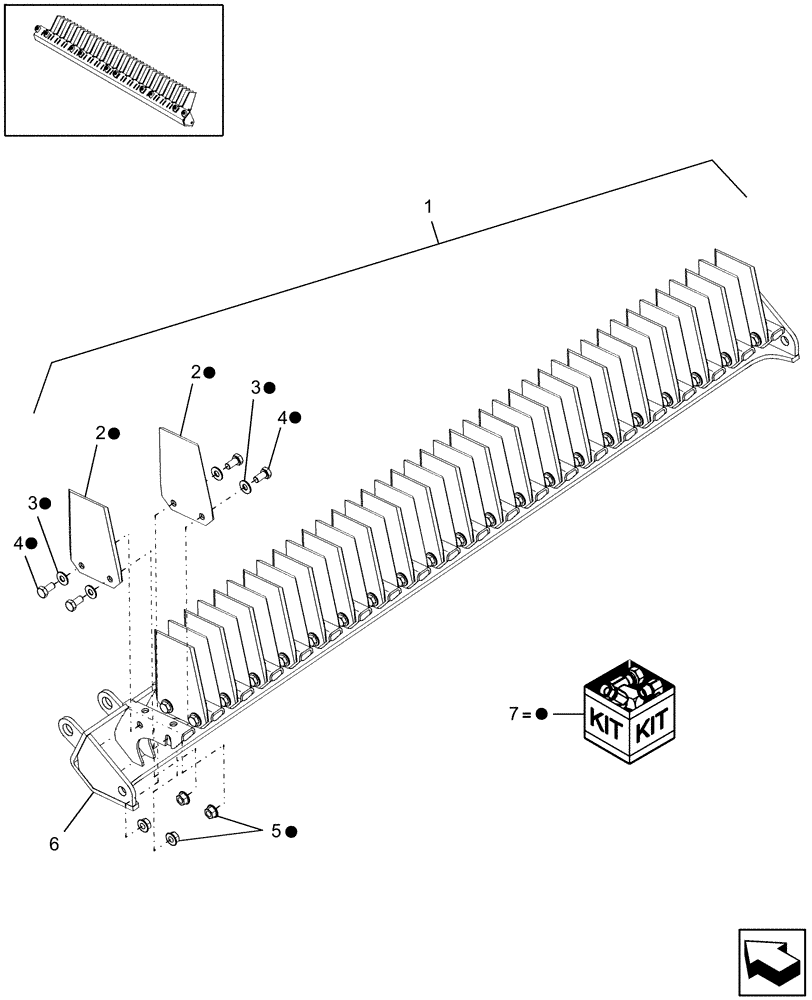

Запчасти Case IH 9120 (88.230.11[01]) - KNIFE FRAME, FIXED; FOR USE W/3X3 INTEGRATED CHOPPER, BSN, YAG208311 (88) - ACCESSORIES

1

84228906

KNIFE ASSY

Bar (20 knives); Incl Refs 2 Thur 6, Start Serial: YAG208282

1шт.

1

87746842

KNIFE ASSY

Bar (20 Knives); Incl Refs 2 Thru 6, As Indicated, Serial Range: -YAG208282

1шт.

1

84162956

KNIFE ASSY

Knife (41 Knives); Incl Refs 2 Thru 6, As Indicated, Start Serial: YAG208282

1шт.

1

87746844

BAR ASSY.

Knife (41 Knives); Incl Refs 2 Thru 6, As Indicated, Serial Range: -YAG208282

1шт.

Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Knife

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

87746842 (40), 87746844 (82)

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

87746842 (40), 87746844 (82)

1шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

87746842 (40), 87746844 (82)

1шт.

6

NSS

NOT SOLD SEPARAT

Bar, Knife

1шт.

7

87751465

SERVICE KIT

Incl Refs 2 (2), 3 (4), 4 (4), & 5 (4)

1шт.
