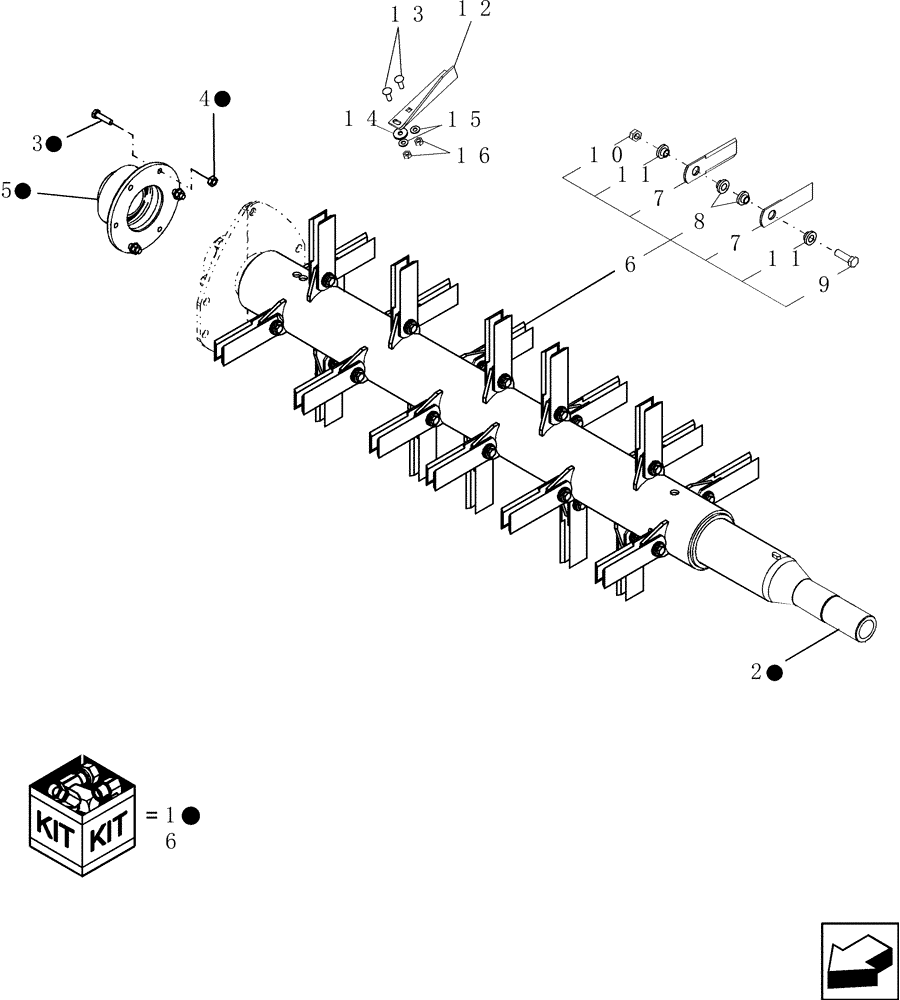

Запчасти Case IH 9120 (88.210.07) - KIT, SERRATED FLAIL STRAWCHOPPER (88) - ACCESSORIES

1

87471276

STRAW CHOPPER

Kit; Incl Refs 2 Thru 5

1шт.

2

87698216

ROTOR

Incl Blades & Mounting Hardware

1шт.

3

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

6шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

5

84174156

BEARING ASSY

Bearing

1шт.

6

87610906

SERVICE KIT

Serrated Blade; Incl Refs 7(44), 8(44), 9(22), 10(22), & 11(44)

1шт.

6

87623435

PACKAGE,SERVICE

Kit, Serrated Blade; Incl Refs 7(8), 8(8), 9(4), 10(4), & 11(8)

1шт.

7

87593795

KNIFE BLADE

Blade, Serrated

44шт.

8

1322242C1

SPACER

44шт.

9

84437627

BOLT,M10 x 55mm, Cl 10.9

22шт.

10

87030549

NUT,M10 x 1.5, Cl 10

22шт.

11

1994758C2

BUSHING,10.5mm ID x 30mm OD x 15mm L

44шт.

12

87510546

ANGLE

1шт.

13

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

14

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.
