Запчасти Case IH 9120 (88.210.05[02]) - STRAWCHOPPER DRIVE W/ SPLINED COUPLING (88) - ACCESSORIES

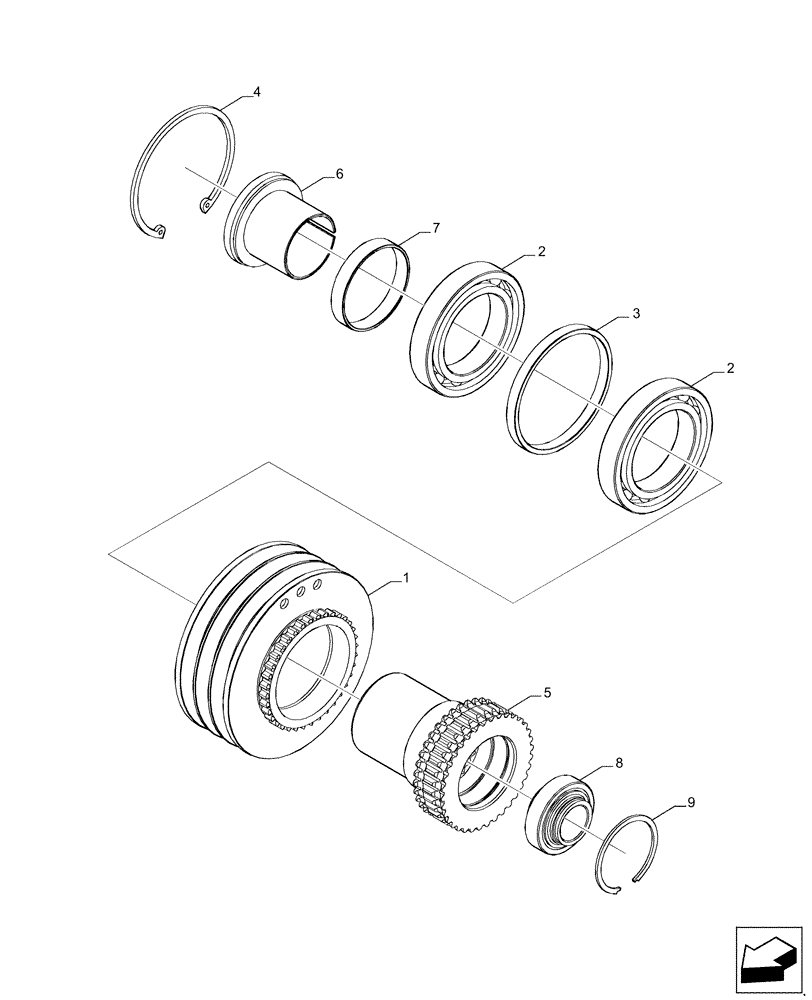

Схема запчастей Case IH 9120 - (88.210.05[02]) - STRAWCHOPPER DRIVE W/ SPLINED COUPLING (88) - ACCESSORIES
5
8
3
1
6
2
7
4
9
2

Артикул

Название

Примечание

Количество

1

87510526

PULLEY,185mm OD

1шт.

2

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

2шт.

3

87510529

SPACER,114.3mm ID x 124.5mm OD x 11mm L

1шт.

4

388294

SNAP RING,M125 x 4mm Thk, Internal

1шт.

5

84169026

SPLINED COUPLING,36 Tooth

1шт.

6

84194916

HUB ASSY.

1шт.

7

84169027

SPACER,80.5mm ID x 86mm OD x 15mm L

1шт.

8

86976370

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

1шт.

9

131692

SNAP RING,2.8" ID x 3" OD x 0.095" Thk, External

1шт.

Выбрано товаров: 9
