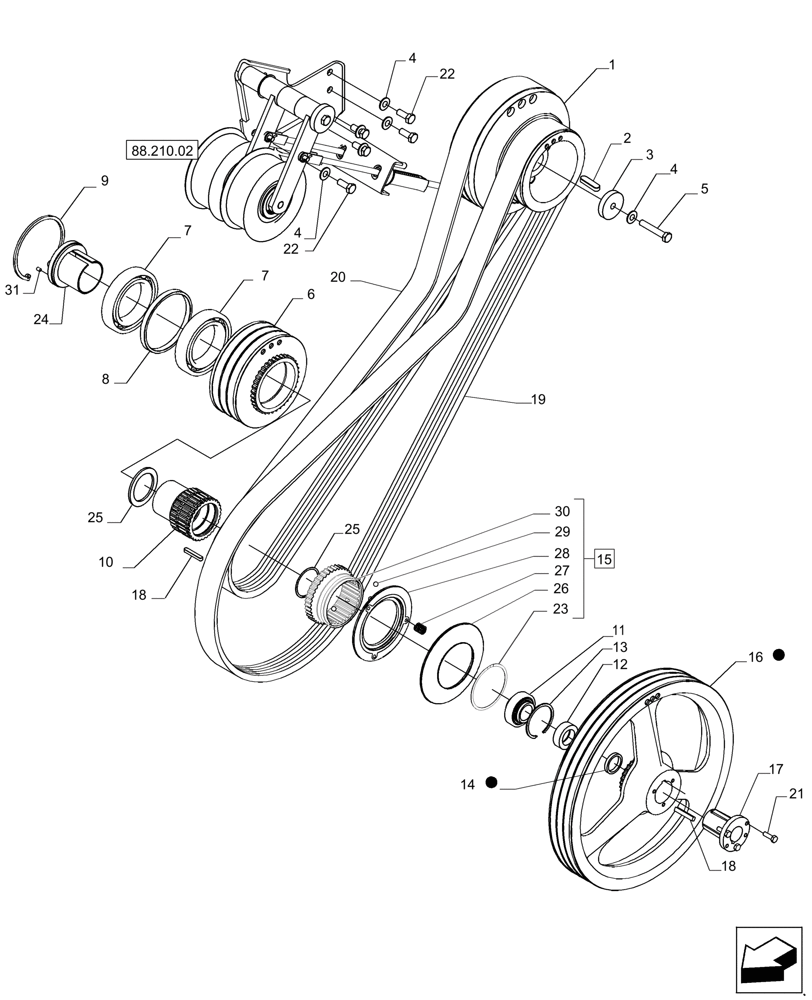

Запчасти Case IH 9120 (88.210.05[01]) - STRAWCHOPPER DRIVE - PULLEYS AND BELTS W/ KEYED COUPLING MY10 UPDATE (88) - ACCESSORIES

1

87281239

PULLEY,275mm OD

Dual, Grooved, 275mm OD

1шт.

3000 RPM

1шт.

1

87283335

PULLEY,255mm OD

Dual, Grooved, 255mm OD, Changed To 87281239 ASN Break, Serial Range: -YAG209067

1шт.

2800 RPM

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

87510526

PULLEY,185mm OD

1шт.

7

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

2шт.

8

87510529

SPACER,114.3mm ID x 124.5mm OD x 11mm L

1шт.

9

388294

SNAP RING,M125 x 4mm Thk, Internal

1шт.

10

87510527

HUB

Hub

1шт.

11

86976370

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

1шт.

12

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

13

131692

SNAP RING,2.8" ID x 3" OD x 0.095" Thk, External

3" Free OD

1шт.

14

87282629

SPACER

1шт.

15

87283584

COLLAR,36T

Shifter, Incl 23, 26 - 30

1шт.

16

87283586

PULLEY,467.7mm OD

1шт.

16

87325137

PLATE

1шт.

16

87283587

GEAR,36T

1шт.

16

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

18

87485

KEY,50.8mm OAL x 7.96mmThk

Square, 5/16" x 2"

2шт.

19

86517680

V-BELT,3 Rib, 3045mm Nominal Length

3 HB

1шт.

20

86976208

V-BELT,3 Rib, 2720mm Nominal Length

, Start Serial: YAG208114

1шт.

3000 RPM

1шт.

20

87283315

V-BELT,16.00 mm W x 2690.00 mm L, 3 Ribs

3 HB, Serial Range: -YAG208113

1шт.

2800 RPM

1шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

23

87283582

RETAINER,119.253mm ID x 125.603mm OD x 1.829mm Thk

Ring

1шт.

24

87510844

HUB ASSY.

1шт.

25

87337454

RETAINER

Series RR, #256

1шт.

26

87283581

PLATE,125.25mm ID x 200mm OD x 3.025mm Thk

1шт.

27

87283583

COMPRESSION SPRING,12.44mm ID x 31.75mm Free Length

3шт.

28

87283580

RING,131.25mm ID x 15mm Thk

1шт.

29

87038215

BALL,10mm OD, Gr 200

10 mm, GR 200, SS

3шт.

30

87283579

COLLAR,36T

Shift

1шт.

31

87019103

SET SCREW,M6 x 10mm

HSH, M6 x 1 x 10

7шт.
