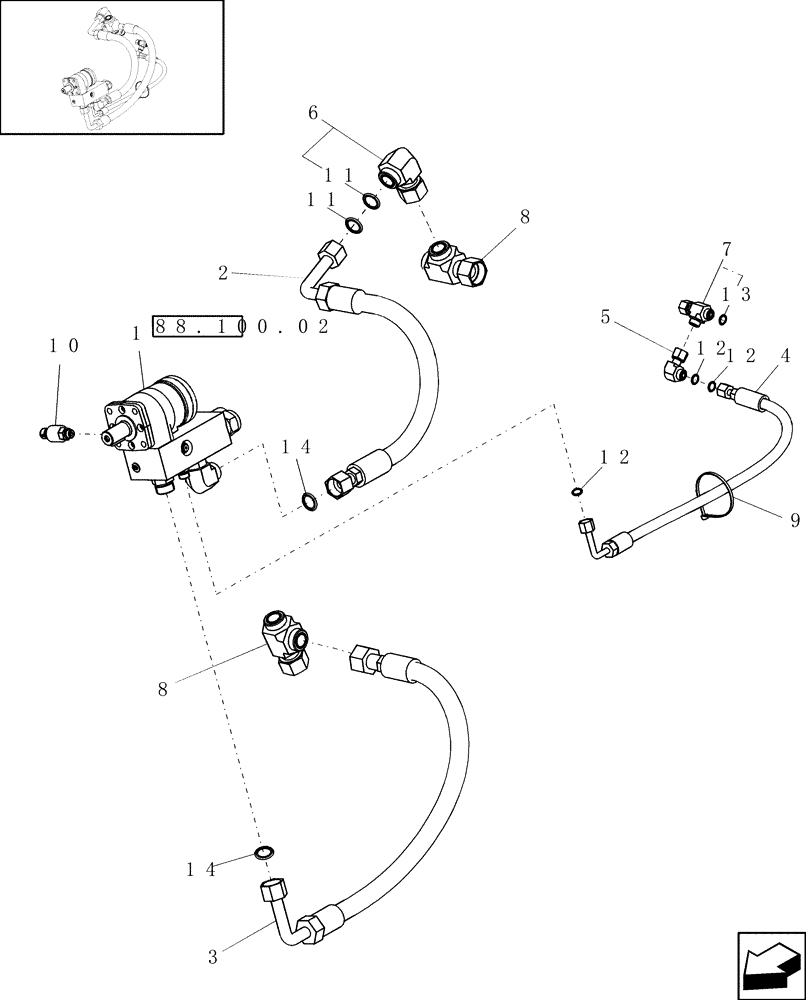

Запчасти Case IH 9120 (80.175.12) - UNLOADING CHAIN DRIVE, HYDRAULICS, SPECIAL FOR RICE - NA ONLY - 7120, 8120, 9120 (80) - CROP STORAGE/UNLOADING

1

0C

ORDER COMPONENTS

Motor, Hyd W/Manifold

1шт.

2

84140062

HOSE ASSY.

Hyd Unload, Pressure

1шт.

3

84140063

HOSE ASSY.

Hyd Unload, Return

1шт.

4

84140064

HOSE ASSY.

Hyd Unload, LS

1шт.

5

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl Ref 12(1)

1шт.

6

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Incl Ref 11(1)

1шт.

7

86729454

TEE

Incl Ref 13(1)

1шт.

8

86641295

TEE,1-7/16"-12 ORFS to Swivel

1 7/16"-12, Serial Range: ORFS-Swivel

2шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

10

86523197

SENSOR

1шт.

11

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

12

89993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
