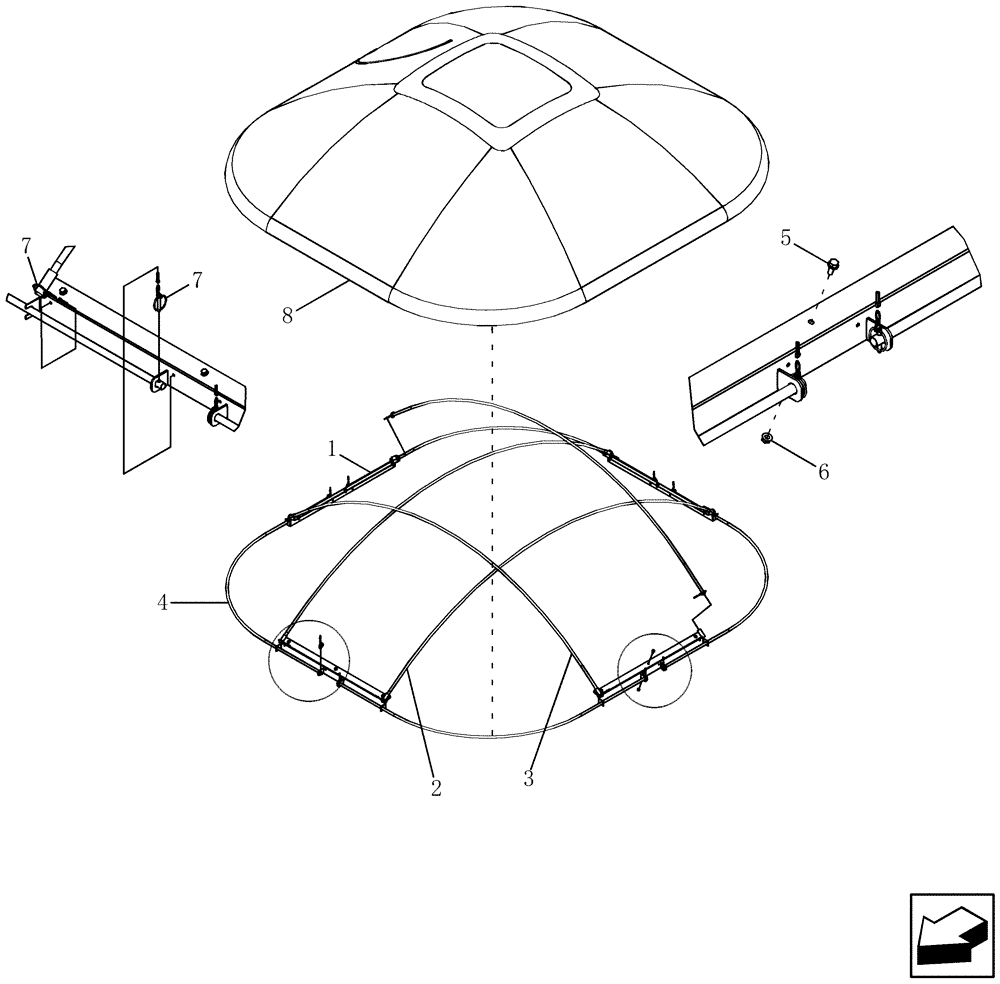

Запчасти Case IH 9120 (80.154.06) - DIA KIT CANVAS ASSY, GRAINTANK EXT. AFX8120, AFX9120 (80) - CROP STORAGE/UNLOADING

1

84154949

SUPPORT ASSY.

4шт.

2

84154940

PIPE

Left Hand, Right Hand

2шт.

3

84154939

PIPE

Front Right, Rear Right

2шт.

4

84154938

PIPE

4шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

7

87106279

PIN,6.4mm OD

16шт.

8

84187375

CANVAS

12330 L / 350 Bushel

1шт.

9

84201536

INSTRUCTION

1шт.
