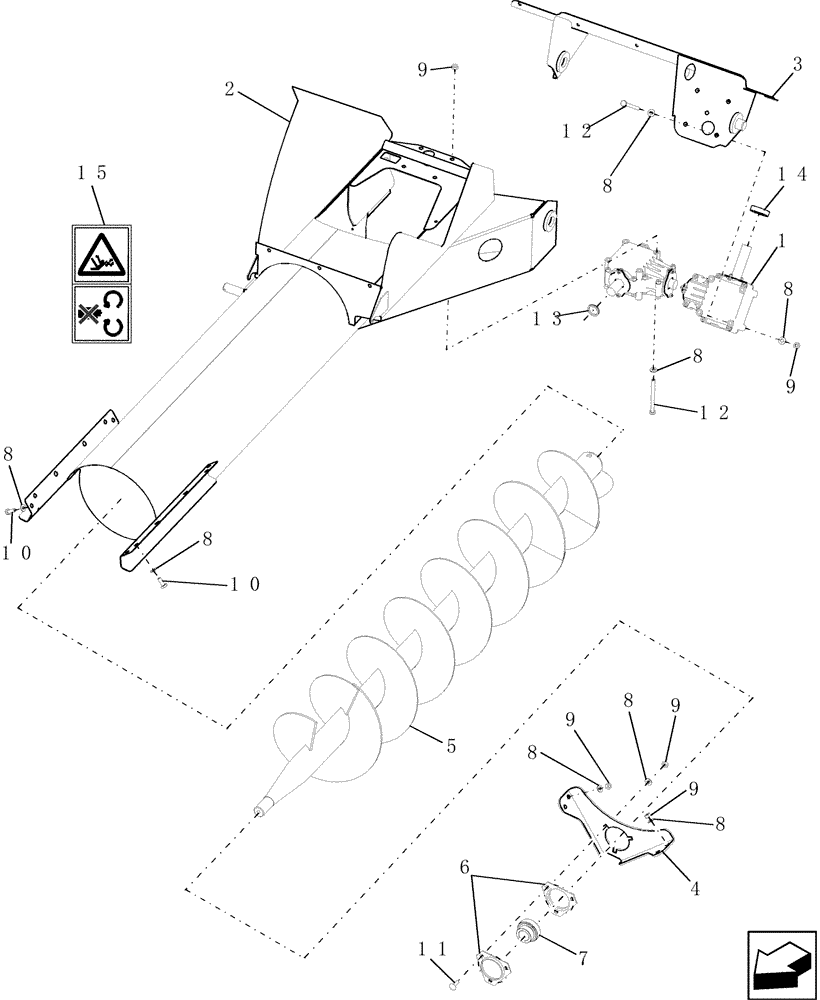

Запчасти Case IH 9120 (80.101.10[01]) - BUBBLE-UP AUGER - 2 SPD (80) - CROP STORAGE/UNLOADING

1

86638425

GEARBOX

1шт.

This is a Tandem Assembly; Part Includes Both Gearboxes Shown

1шт.

86638425R

REMAN-GEARBOX

7120 (9/08-2/12), 8120, 9120, Both (9/08-)

1шт.

86638425C

CORE-GEARBOX

Return Number

1шт.

1

87721343

GEARBOX

MY2010

1шт.

Bubbler Gearboxes get a Dipstick in Rear Box for MY2010. Old Sheet Metal Housing will not Accomodate New Gearbox

1шт.

87721343R

REMAN-GEARBOX

8120, 9120, Both (9/08-), 7120 (9/08-2/12)

1шт.

87721343C

CORE-GEARBOX

Return Number

1шт.

2

87662993

SERVICE KIT

Std L = 2148 mm, Includes Ref 15

1шт.

2

84122660

TUBE,320 mm ID, 325 mm OD, 2148 mm Length

Std L = 2148 mm, Includes Ref 15

1шт.

MY2010 and After

1шт.

2

87668035

SERVICE KIT

Extended Wear & Special; L = 2148 mm, Includes Ref 15

1шт.

2

84122662

TUBE,320 mm ID, 325 mm OD, 2148 mm Length

Extended Wear & Special; L = 2148 mm, Includes Ref 15

1шт.

MY2010 and After

1шт.

3

87107022

SUPPORT

1шт.

4

86998682

BRACKET

1шт.

5

87106615

AUGER

Std Wear, L = 2072 mm

1шт.

5

87733275

AUGER

Extended Wear & Special, L = 2072 mm

1шт.

6

86620026

FLANGED BEARING

2шт.

7

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

87016482

SET SCREW,M10 x 10mm

1шт.

Not Shown

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

23шт.

9

100016

NUT,M10 x 1.5, Cl 8

15шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

12

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

8шт.

13

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

1шт.

14

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

1шт.

15

86640420

DANGER DECAL

English

1шт.

15

86640422

DANGER DECAL

Spanish

1шт.

15

86640421

DANGER DECAL

French

1шт.
