Запчасти Case IH 9120 (80.101.08) - ELEVATOR HEAD (80) - CROP STORAGE/UNLOADING

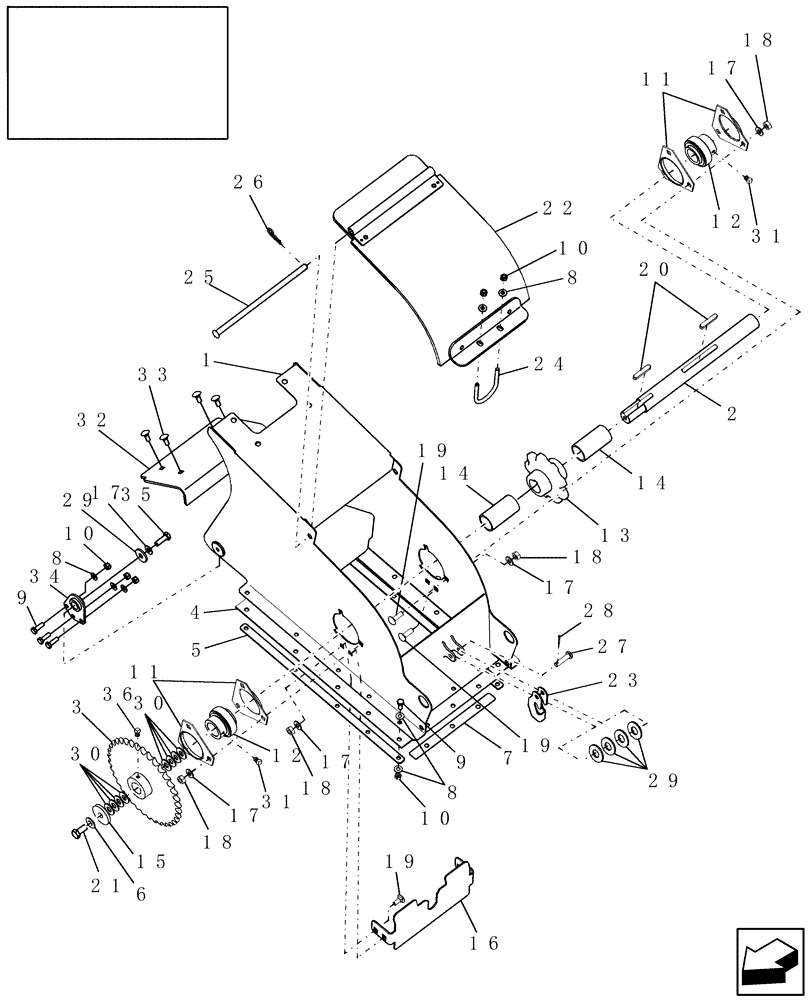

Схема запчастей Case IH 9120 - (80.101.08) - ELEVATOR HEAD (80) - CROP STORAGE/UNLOADING
22
15
30
18
10
8
1
27
21
6
33
17
2
11
14
17
5
36
17
34
31
8
18
25
9
20
31
18
32
3
18
29
10
24
17
10
28
4
23
9
11
12
17
35
8
19
19
7
16
19
30
13
26
12
14
29

Артикул

Название

Примечание

Количество

1

87584809

FRAME

1шт.

1

87733833

FRAME

Extended Wear

1шт.

2

86998178

SHAFT

1шт.

3

87748377

SPROCKET ASSY.

Driven

1шт.

4

87283706

SEAL

1шт.

5

86998906

PLATE

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

7

86998908

PLATE

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

28 (Std Wear), 32 (Ext Wear)

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

19шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

15 (Std Wear), 19 (Ext Wear)

1шт.

11

86620026

FLANGED BEARING

4шт.

12

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

& Locking Collar

2шт.

13

87283438

SPROCKET

Drive

1шт.

14

86998922

SPACER,36.45mm ID x 42.92mm OD x 83mm L

Spacer, Elevator Head

2шт.

15

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

16

86998886

PLATE

Strip-off

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

18

100016

NUT,M10 x 1.5, Cl 8

10шт.

19

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

20

170012

KEY,8mm W x 50mm OAL

2шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

22

87109213

COVER

Top

1шт.

22

87733829

COVER ASSY

Top; Extended Wear

1шт.

23

86581559

HANDLE

1шт.

24

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

25

86998942

PIN

, Serial Range: -Y9G207610

1шт.

25

84214452

GROOVED PIN

MY10, Headless Pin, Use Ref 26, One on Each Side, Must Be Used with New Grain Covers, Start Serial: Y9G207610

1шт.

26

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

27

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

28

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

29

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

6шт.

30

87584813

WASHER,30.5mm ID x 51mm OD x 1.17mm Thk

8/ARшт.

31

87016482

SET SCREW,M10 x 10mm

2шт.

32

87733824

WEAR PLATE

Extended Wear

1шт.

33

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

34

87678426

PIVOT ASSY.

2шт.

35

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

36

380530

SET SCREW,Hex, M8 x 10mm

1шт.

Выбрано товаров: 39
