Запчасти Case IH 9120 (74.140.05) - TAILINGS PROCESSOR HOUSING ASSEMBLY (74) - CLEANING

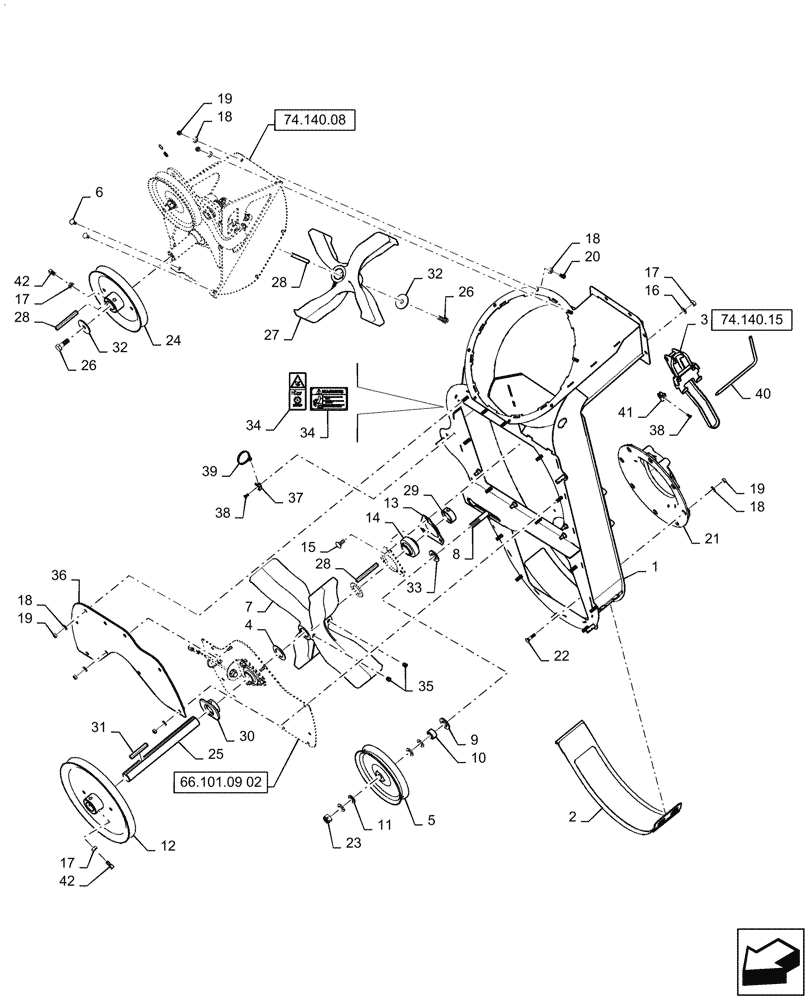

Схема запчастей Case IH 9120 - (74.140.05) - TAILINGS PROCESSOR HOUSING ASSEMBLY (74) - CLEANING
74.140.15
14
17
6
22
23
32
1
16
20
13
8
3
25
26
29
33
12
42
18
7
26
21
34
38
28
28
18
31
4
35
37
18
24
15
19
5
11
42
19
2
32
17
39
36
19
30
38
9
34
40
28
10
41
17
18
27
74.140.08
66.101.09 02

Артикул

Название

Примечание

Количество

1

87737487

HOUSING

Incl Ref 34

1шт.

Extended Wear

1шт.

New Housing Uses 87556072 Rivnuts Instead of Welded Nuts

1шт.

1

87737488

HOUSING

Incl Ref 34

1шт.

EU Only

1шт.

Extended Wear

1шт.

2

87728882

DOOR

Clean-out

1шт.

2

87736624

DOOR ASSY.

Clean-out

1шт.

Extended Wear

1шт.

2

87737486

HATCH

Clean-out, Hard Threshing; Included In Kit 87743232

1шт.

2

87737484

DOOR ASSY.

Clean-out, Hard Threshing; Included In Kit 87743231

1шт.

Extended Wear

1шт.

3

0C

ORDER COMPONENTS

Latch

1шт.

4

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

1шт.

5

86976165

IDLER,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

Idler

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

87541978

BLOWER

Machined Impeller; See Also Ref 35

1шт.

8

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

1шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

10

87108015

SPACER

1шт.

11

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

12

87283318

PULLEY,344.7mm OD

Tailings, Incl 17, 42

1шт.

13

86620026

FLANGED BEARING

2шт.

14

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

15

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

17

100016

NUT,M10 x 1.5, Cl 8

9шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

33шт.

19

9706690

NUT,M8 x 1.25, Cl 8

27шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

21

86997060

COVER

1шт.

22

62196

BOLT

Plow, M8

8шт.

23

86000441

NUT,M16 x 2.0, Cl 8

1шт.

24

87283292

PULLEY,251.6mm OD

Tailings, Incl 17, 42

1шт.

25

86997062

SHAFT

Upper Blower Drive

1шт.

26

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

27

87542137

BLOWER

Machined Impeller

1шт.

27

87549450

BLOWER

1шт.

Extended Wear

1шт.

28

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

3шт.

29

86997053

COLLAR

1шт.

30

87107362

PICK-UP

1шт.

31

86996914

KEY

1шт.

32

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

2шт.

33

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

1шт.

34

86626958

WARNING DECAL

Safety, English

1шт.

34

84014117

DECAL

Safety

1шт.

EU Only

1шт.

35

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

36

87684737

COVER ASSY

1шт.

37

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

38

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

39

86566989

CABLE TIE,208mm L

1шт.

40

9819720

PIN,7.94mm OD

1шт.

41

323307

CLAMP

1шт.

42

393599

SET SCREW,M10 x 25mm, Cl 12.9

6шт.

Выбрано товаров: 56
