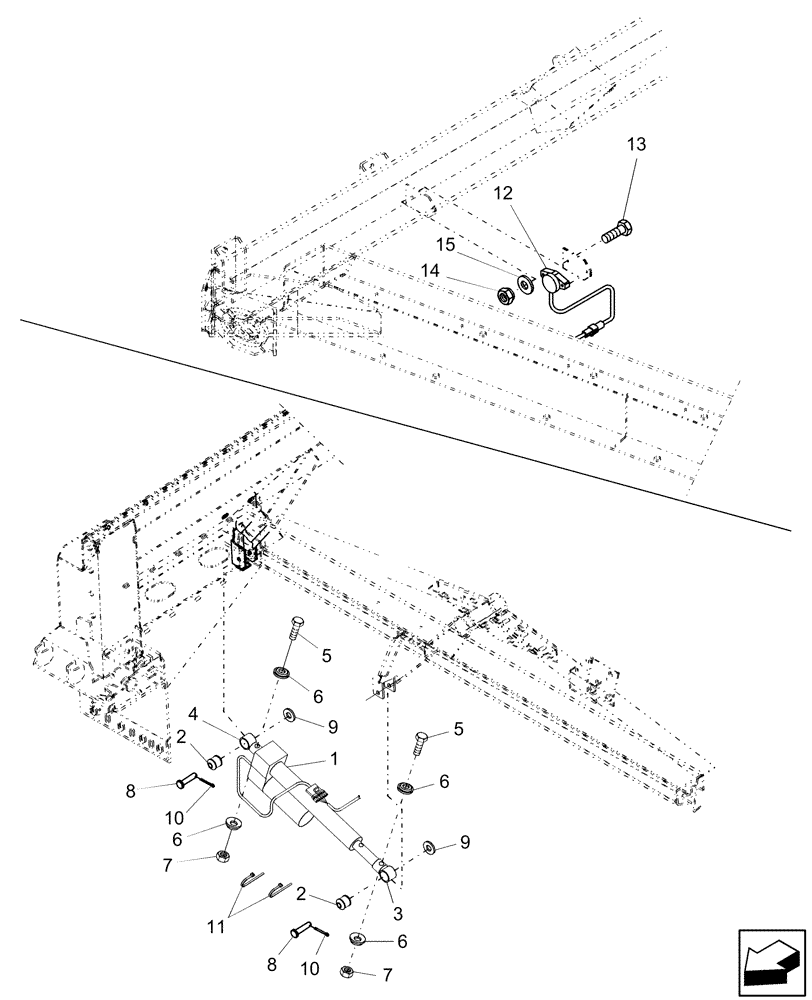

Запчасти Case IH 9120 (55.780.11) - ACTUATOR, SELF LEVELING (55) - ELECTRICAL SYSTEMS

1

87522008

ACTUATOR

Self Leveling

1шт.

1

87522008R

REMAN-ELECTRIC MOTOR

8120, 9120, Both (9/08-), 7120 (9/08-2/12), All AXIAL-FLOW COMBINE

1шт.

1

87522008C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

445913

RUBBER BUSHING,12.2mm ID x 32.4mm OD x 40mm L

2шт.

3

921250

CLAMP

1шт.

4

753565

CLAMP

1шт.

5

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

412118

CLEVIS PIN,12mm OD x 65mm L

2шт.

9

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

4шт.

10

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

2шт.

12

87026294

SENSOR

Inclination

1шт.

13

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
