Запчасти Case IH 9120 (55.627.11) - MOTOR, CONCAVE ADJUSTMENT, BSN YBG213619 (55) - ELECTRICAL SYSTEMS

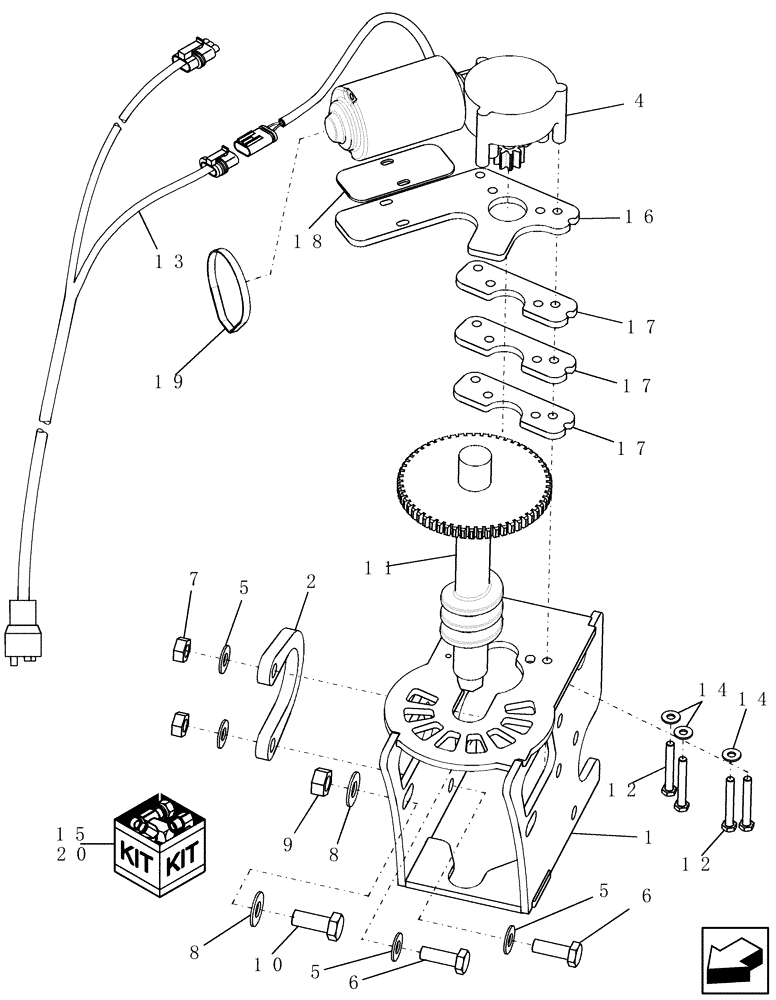

Схема запчастей Case IH 9120 - (55.627.11) - MOTOR, CONCAVE ADJUSTMENT, BSN YBG213619 (55) - ELECTRICAL SYSTEMS
5
20
13
17
10
17
16
18
1
14
12
4
19
17
5
6
8
5
11
2
9
8
7
15
12
14
6

Артикул

Название

Примечание

Количество

84273916

ELECTRIC MOTOR

Complete Motor Assembly

1шт.

84273916R

REMAN-ELECTRIC MOTOR

Remanufactured Electric Motor

1шт.

84273916C

CORE-ELECTRIC MOTOR

Return Number, ELECTRIC MOTOR

1шт.

87352496C

CORE-ELECTRIC MOTOR

Return Number, ELECTRIC MOTOR - for N.A. Only

1шт.

1

87342204

BRACKET

1шт.

2

86997859

BRACKET

Supporting, L.H.

1шт.

3

Reference Not Used

1шт.

4

84273916

ELECTRIC MOTOR

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

7

100016

NUT,M10 x 1.5, Cl 8

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

11

87109757

SHAFT

1шт.

12

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

13

87280772

WIRE HARNESS

Concave Adjustment Motor

1шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

15

87352554

SERVICE KIT

Motor Support - Incl Ref 16, 17, 18 & 19

1шт.

16

87352933

PLATE

Plate

1шт.

17

87052251

PLATE

3шт.

18

87352553

SHIM,40mm OD x 2.14mm Thk

1шт.

19

529070

CABLE TIE,368.3mm L

1шт.

20

87727206

DIA KIT, HARVESTER

Motor Gear Replacement; Incl Motor Pinion Gear, Adhesive, & Instructions

1шт.

Выбрано товаров: 24
