(55.518.05) - KIT, ADDITIONAL WINDSHIELD WIPER (ARM)

Запчасти Case IH 9120 (55.518.05) - KIT, ADDITIONAL WINDSHIELD WIPER (ARM) (55) - ELECTRICAL SYSTEMS

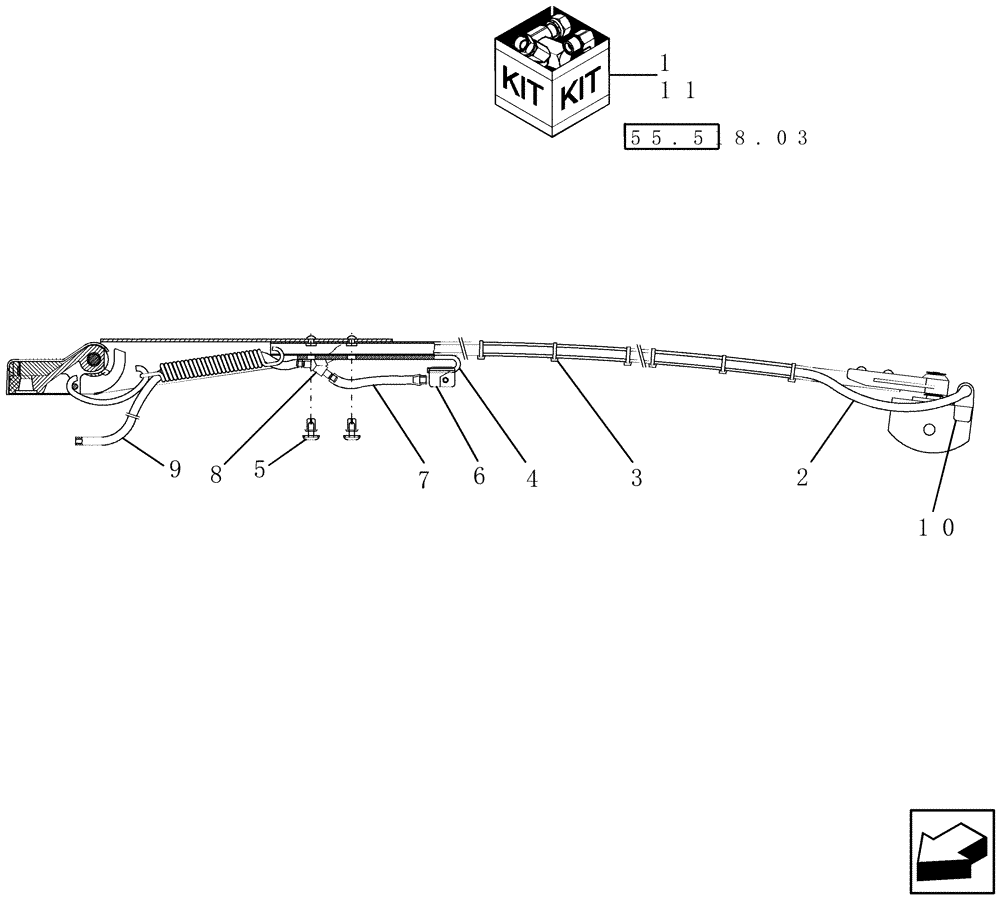

Схема запчастей Case IH 9120 - (55.518.05) - KIT, ADDITIONAL WINDSHIELD WIPER (ARM) (55) - ELECTRICAL SYSTEMS
1
8
11
5
2
9
55.518.03
6
4
10
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87281666

WINDSHIELD WASHER

Includes Ref 2 Thru 10

1шт.

2

87282393

HOSE

Additional Windshield Wiper

1шт.

3

PL

PROCURE LOCALLY

Bundling Tie

8шт.

4

87282394

ARM

1шт.

5

87282395

RIVET

Snap

2шт.

6

87282396

NOZZLE CAP

Single

1шт.

7

87282397

HOSE

Additional Windshield Wiper

1шт.

8

87282398

FITTING

Y

1шт.

9

PL

PROCURE LOCALLY

Hose, 450 mm

1шт.

10

87282392

HOLDER

Nozzle, Double

1шт.

11

84083382

DIA KIT, ADD PROD

Wiper; Includes: Ref 2 Thru 10

1шт.

11

87049763

DIA KIT, HARVESTER

Wiper; Includes: Ref 2 Thru 10

1шт.
