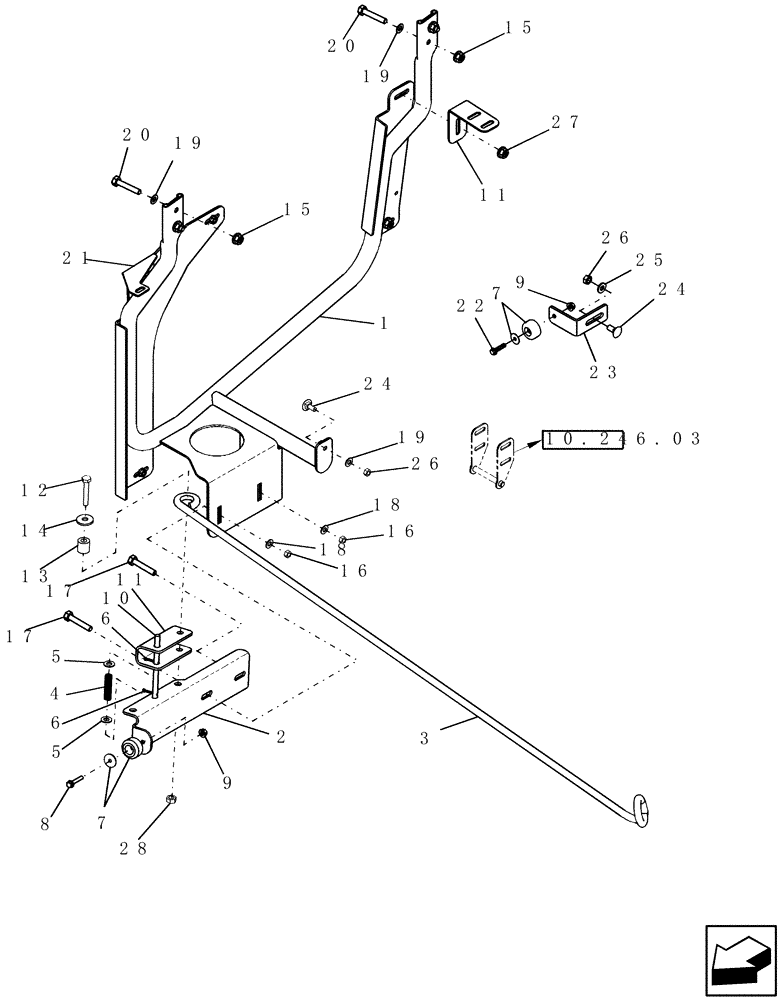

Запчасти Case IH 9120 (55.404.16) - SUPPORT TUBE & HINGE, R.H. REAR TAIL LIGHT PANEL (55) - ELECTRICAL SYSTEMS

1

84135512

BRACKET

1шт.

2

87497819

BRACKET

1шт.

3

84130952

ROD

1шт.

4

192216A1

SPRING

1шт.

5

86588501

WASHER,11mm ID x 20mm OD x 2.5mm Thk

2шт.

6

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

7

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

8

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

9

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

10

87728300

PIN

1шт.

11

87728334

BRACKET

1шт.

12

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

13

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

1шт.

14

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

1шт.

15

100016

NUT,M10 x 1.5, Cl 8

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

2шт.

17

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

21

84132993

BRACKET

1шт.

22

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

23

84135076

BRACKET

1шт.

24

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

2шт.

27

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

28

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.
