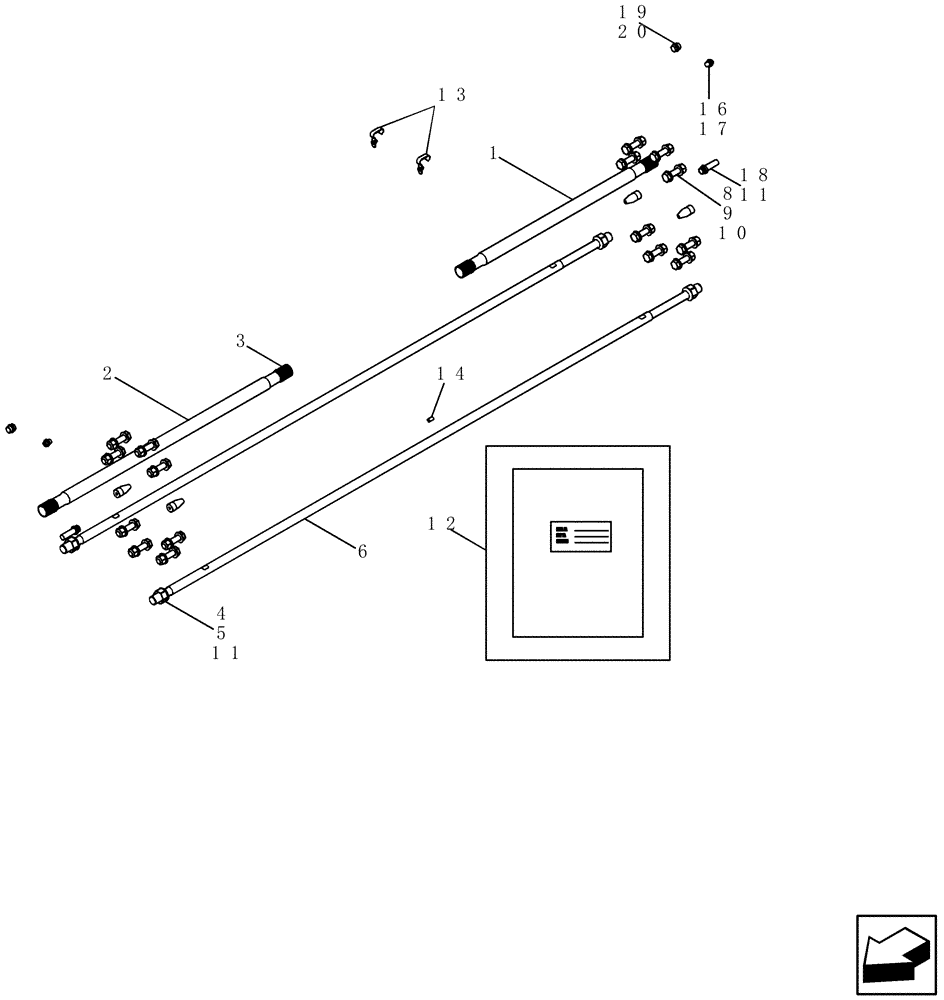

Запчасти Case IH 9120 (48.999.01[02]) - DIA TRACK KIT HARDWARE, AFX8010, AFX8120, AFX9120 (48) - TRACKS & TRACK SUSPENSION

1

84440951

DRIVE SHAFT

OAL 979mm

1шт.

2

84440957

DRIVE SHAFT

OAL 1239mm

1шт.

3

84446910

SNAP RING,M40

4шт.

4

300852

NUT,M30 x 1.5, Cl 8

4шт.

5

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

4шт.

6

84989399

ROD

2шт.

7

84154339

PIN

Dowel, Tapered (Illustrated, But Not Called Out)

4шт.

8

87024335

BOLT,Hex, M20 x 80mm, Cl 10.9

16шт.

9

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

10

87024336

NUT,M20 x 2.5, Cl 10

16шт.

11

401624

LOCTITE

1шт.

12

87755889

INSTRUCTION

1шт.

13

87498871

SERVICE KIT

1шт.

14

84038824

BUSHING,9mm ID x 12mm OD x 20mm L

1шт.

16

87282044

PLUG,M18 x 1.5, 28mm L

2шт.

17

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

18

87682412

SCREW,M20 x 60mm, Cl 12.9

2шт.

19

150006

DRAIN PLUG,M24 x 1.5

2шт.

20

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.
