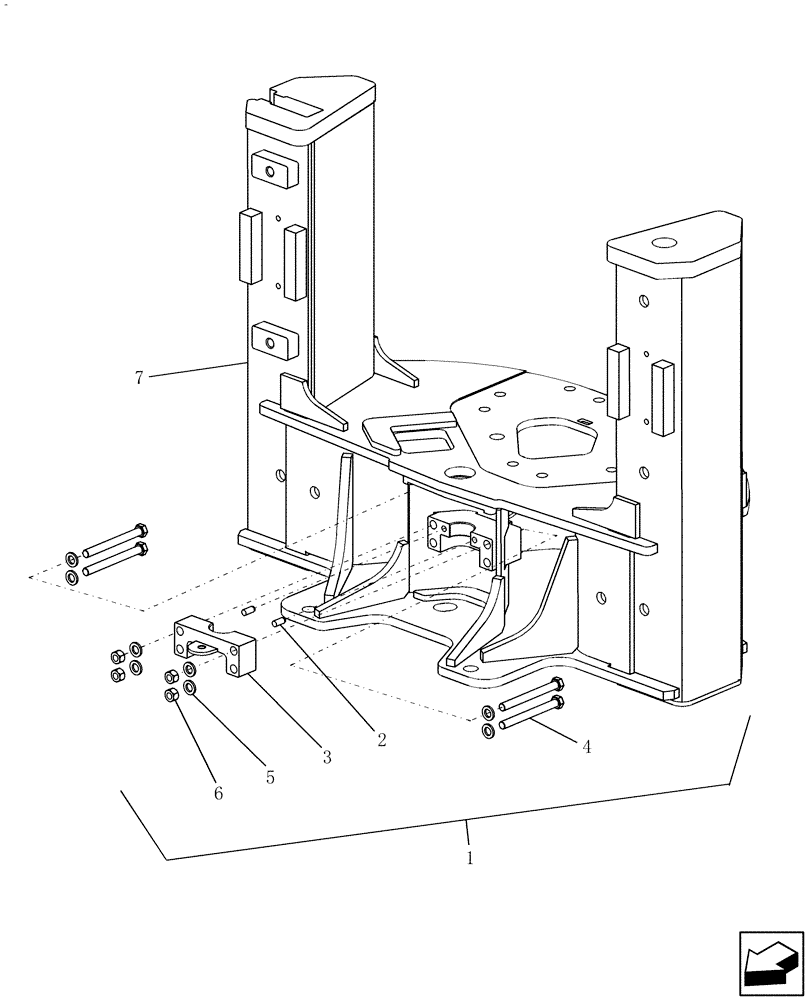

Запчасти Case IH 9120 (48.134.07) - TRACK DRIVE - YOKE FRAME - NA ONLY - 8120, 9120 (48) - TRACKS & TRACK SUSPENSION

1

87471510

FRAME ASSY

Yoke, L.H.; Incl Refs 2 Through 7

1шт.

1

87471530

FRAME ASSY

Yoke, R.H.; Incl Refs 2 Through 7

1шт.

2

86978768

DOWEL,M12 x 30mm L

2шт.

3

87471492

SUPPORT ASSY.

1шт.

4

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

4шт.

5

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

86981470

NUT

M16, CL 10 DOR

4шт.

7

NSS

NOT SOLD SEPARAT

Yoke Frame, L.H.

1шт.

7

NSS

NOT SOLD SEPARAT

Yoke Frame, R.H.

1шт.
