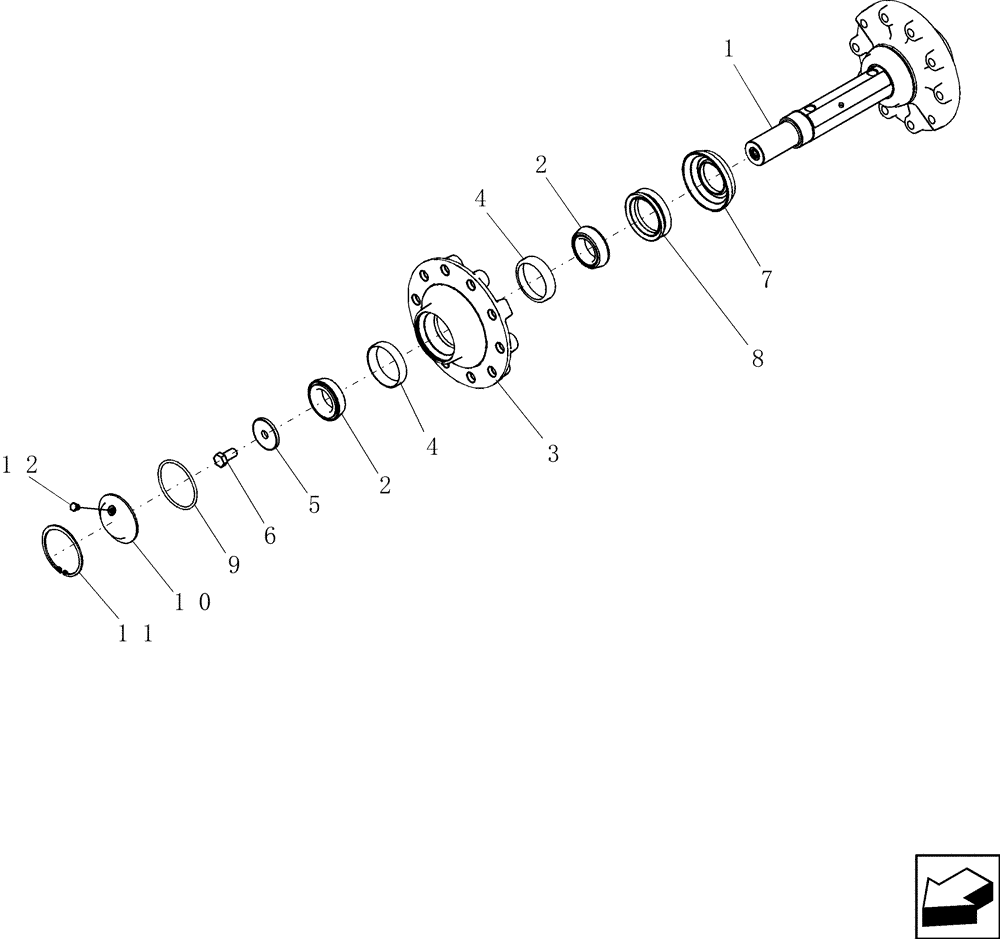

Запчасти Case IH 9120 (48.130.02) - TRACK DRIVE - REAR IDLER WHEELS AXLE - NA ONLY - 8120, 9120 (48) - TRACKS & TRACK SUSPENSION

1

87451058

SHAFT

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

3

87416606

HUB

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

5

87387720

RETAINER

2шт.

6

87449801

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

7

87304016

CUP,86mm ID x 154mm OD x 35.8mm Thk

2шт.

8

87437010

SEAL

2шт.

9

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

10

87408174

CAP

2шт.

11

370014

SNAP RING,M130, Internal

2шт.

12

246406A1

PLUG,M12 x 1.5 ORB

2шт.
