(44.511.04) - WHEELS, FRONT 900/60R32 176A8 AND 900/75R32 184A8

Запчасти Case IH 9120 (44.511.04) - WHEELS, FRONT 900/60R32 176A8 AND 900/75R32 184A8 (44) - WHEELS

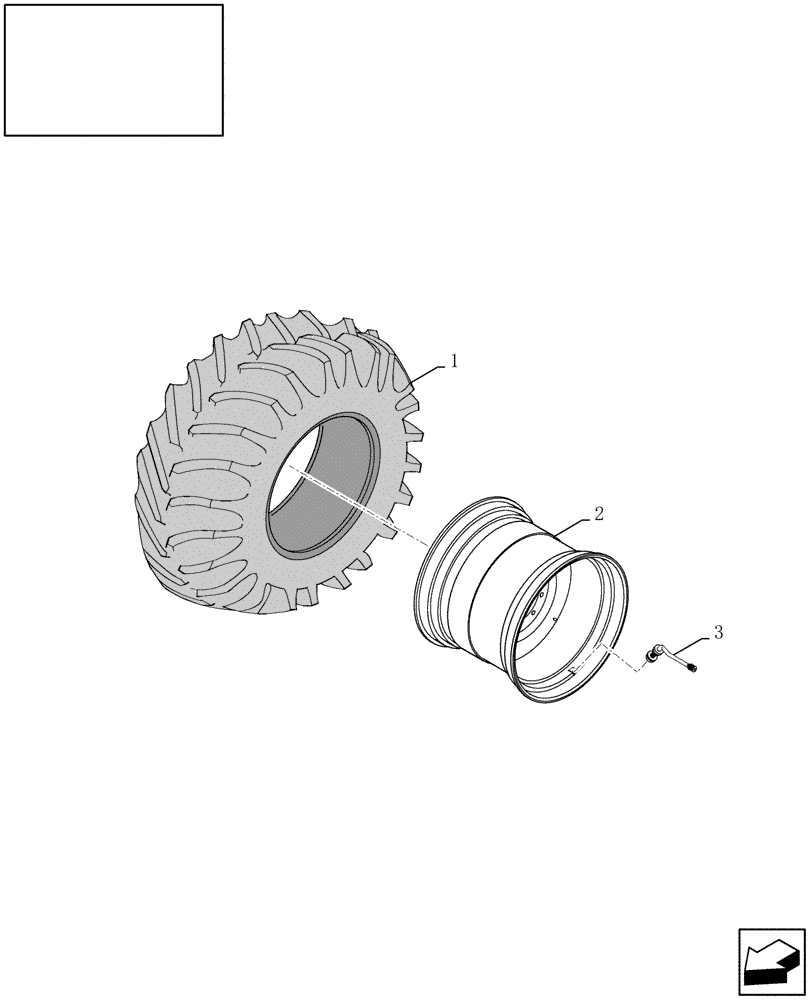

Схема запчастей Case IH 9120 - (44.511.04) - WHEELS, FRONT 900/60R32 176A8 AND 900/75R32 184A8 (44) - WHEELS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Tire, procure locally

1шт.

2

84200754

RIM

32 X DW30B, Use with tire size 900/60R32 176A8 R1W

1шт.

2

87682368

RIM

32 X DW30B, Use with tire size 900/75R32 184A8 R1W

1шт.

For NA Only

1шт.

3

87106339

VALVE STEM

1шт.

87106340

PLUG

Valve Hole

1шт.

Выбрано товаров: 6
