Запчасти Case IH 9120 (44.200.09) - HYDRAULIC LINES, POWERED REAR AXLE (44) - WHEELS

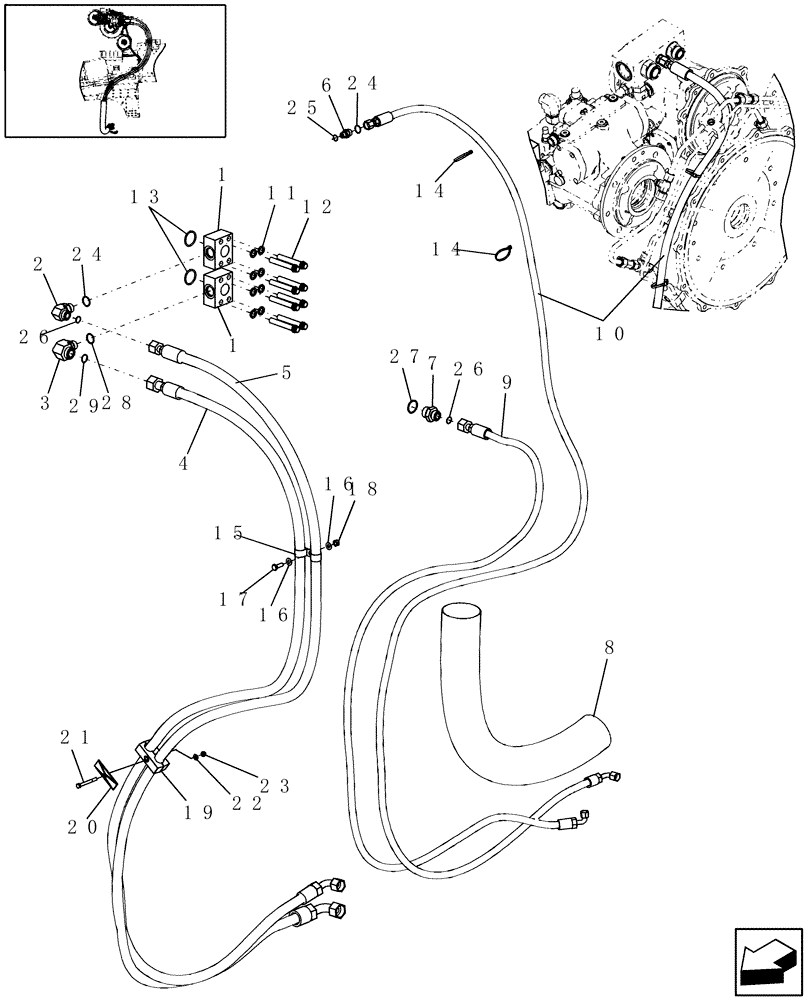

Схема запчастей Case IH 9120 - (44.200.09) - HYDRAULIC LINES, POWERED REAR AXLE (44) - WHEELS
1
12
11
1
26
24
27
14
21
8
20
15
16
17
24
3
25
14
23
4
9
5
2
6
19
18
22
28
7
13
10
29
16
26

Артикул

Название

Примечание

Количество

1

9818288

ADAPTER

2шт.

2

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl Refs 24 & 26

1шт.

3

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl Refs 28 & 29

1шт.

4

87644661

HOSE ASSY.,19.05mm ID x 4265mm L, SAE 100R15

PRA Pressure, A

1шт.

5

87644662

FLEXIBLE HOSE,19.05mm ID x 4400mm L, SAE 100R15

PRA Pressure, B

1шт.

6

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl Refs 24 & 25

1шт.

7

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

Incl Refs 26 & 27

1шт.

8

87106155

SLEEVE

1шт.

9

87105633

HOSE ASSY.

PRA Valve Drain

1шт.

10

87280418

HOSE

PRA Motor Drain

1шт.

11

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

12

87680392

12 PT SCREW,M14 x 2.0 x 90mm, Cl 12.9

8шт.

13

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

14

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

15

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

17

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

18

100016

NUT,M10 x 1.5, Cl 8

1шт.

19

84154975

CLAMP

1шт.

20

87000231

PLATE

1шт.

21

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
