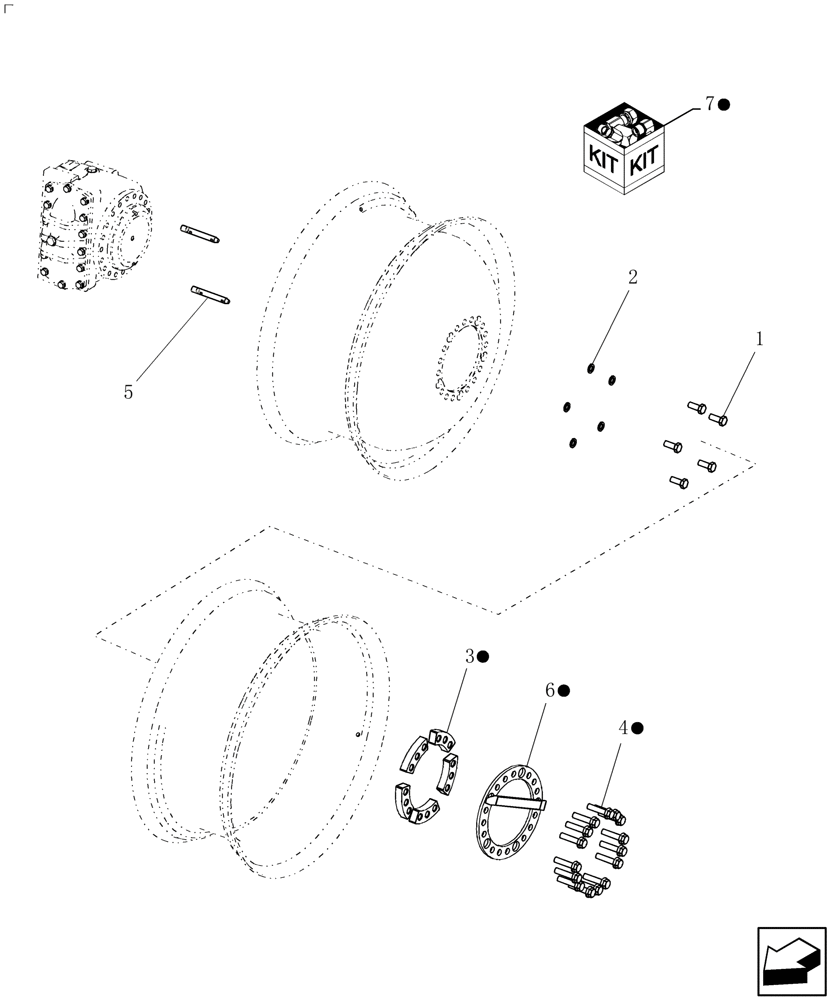

Запчасти Case IH 9120 (44.100.13) - DUAL WHEEL MOUNT (44) - WHEELS

1

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

10шт.

2

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

10шт.

3

87327940

PLATE

10шт.

4

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

30шт.

5

87283521

STUD,M22 x 180

4шт.

6

87280385

SPACER

2шт.

For Road Transport

1шт.

7

87752428

SERVICE KIT

Dual Wheel Fixation; Incl Refs 3, 4, & 6

1шт.
