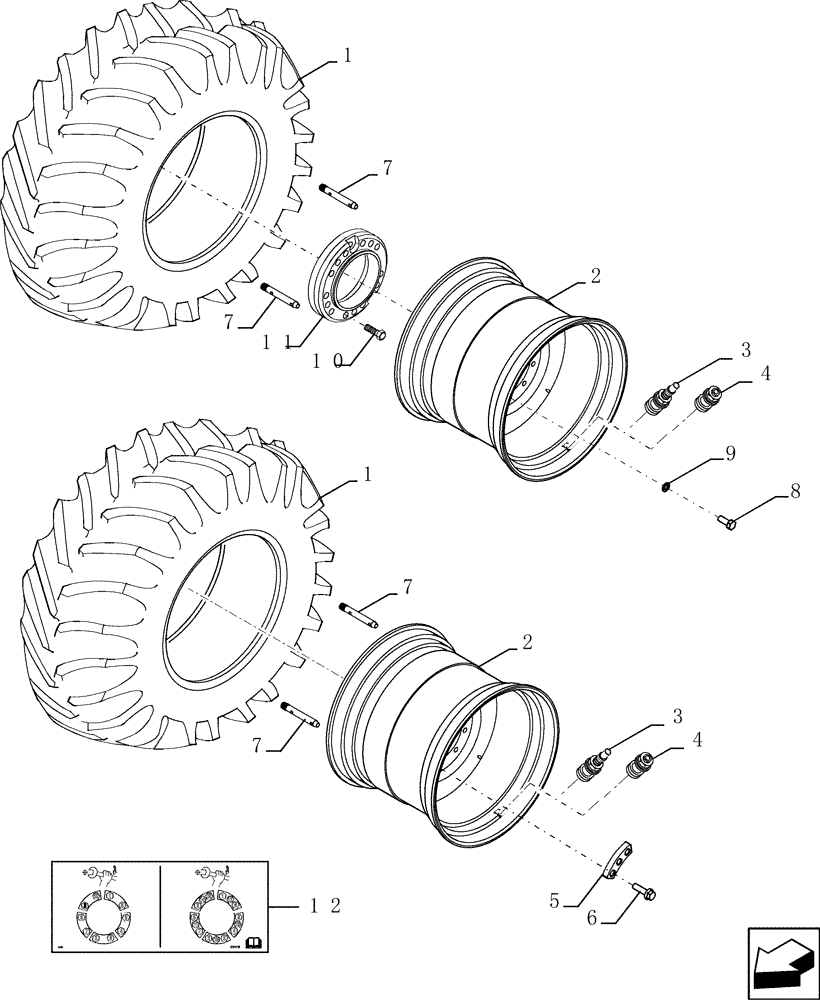

Запчасти Case IH 9120 (44.100.10) - WHEELS, FRONT - EU, 32 X DW27A (DELAYED) (44) - WHEELS

1

PL

PROCURE LOCALLY

Tire, 800/65R32 172A8 R1W

1шт.

1

PL

PROCURE LOCALLY

Tire, 900/60R32 176A8 R1W

1шт.

2

87692466

WHEEL ASSY.

32 x DW27A

1шт.

3

87106339

VALVE STEM

1шт.

4

87106340

PLUG

1шт.

5

87598803

PLATE

5шт.

6

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

15шт.

7

87283521

STUD,M22 x 180

2шт.

8

87515082

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

15шт.

9

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

15шт.

10

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

2шт.

11

87398579

SPACER

76 mm

1шт.

12

87570139

DECAL

Bolt Torquing Sequence

1шт.
