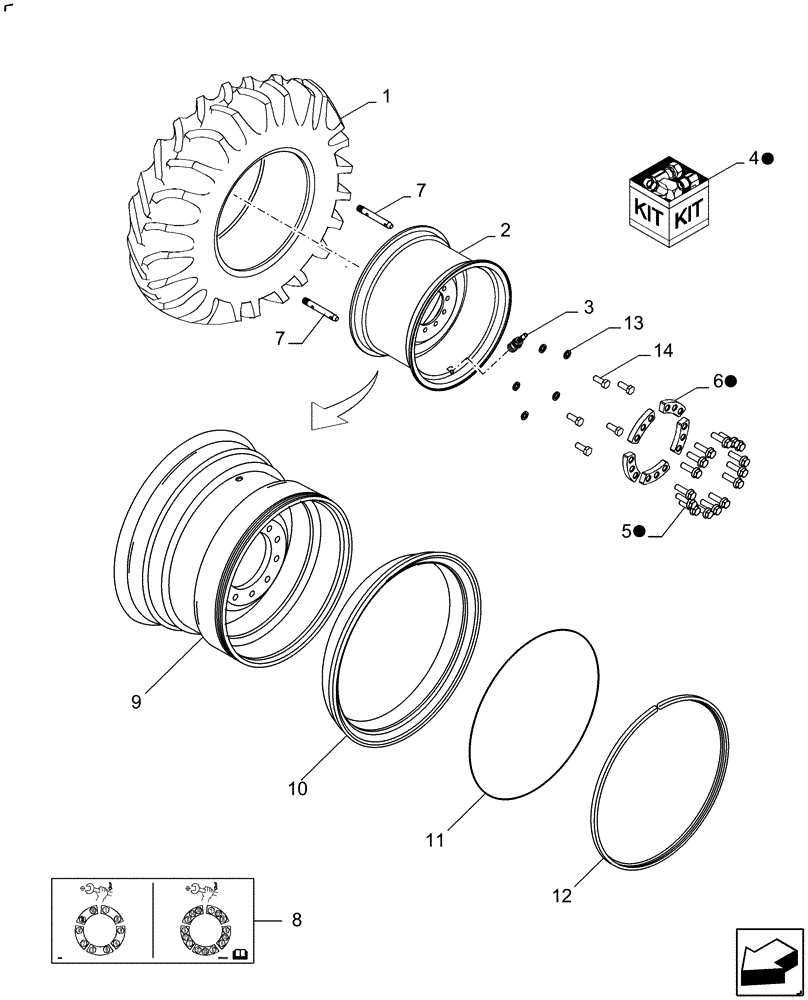

Запчасти Case IH 9120 (44.100.07) - WHEELS, FRONT FLOTATION - 76 X 50.00-32 X DW44A (DELAYED) (44) - WHEELS

1

NS

NOT SERVICED

Tire

1шт.

2

86996678

WHEEL ASSY

Incl Ref 9 thru 12

1шт.

3

86997685

TIRE TUBE

1шт.

4

87327483

SERVICE KIT

Flotation Fixation; Incl Ref 5(30) & 6(10)

1шт.

5

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

15шт.

6

87598803

PLATE

5шт.

7

87283521

STUD,M22 x 180

2шт.

8

87570139

DECAL

Bolt Torquing Sequence

1шт.

9

NSS

NOT SOLD SEPARAT

Wheel

1шт.

10

87758241

LOCKING RING

Side; 32 x 44DWM

1шт.

11

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

12

184472C1

RING

1шт.

13

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

5шт.

14

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

M22 x 1.5 x 55, Full 10.9 DOR

5шт.
