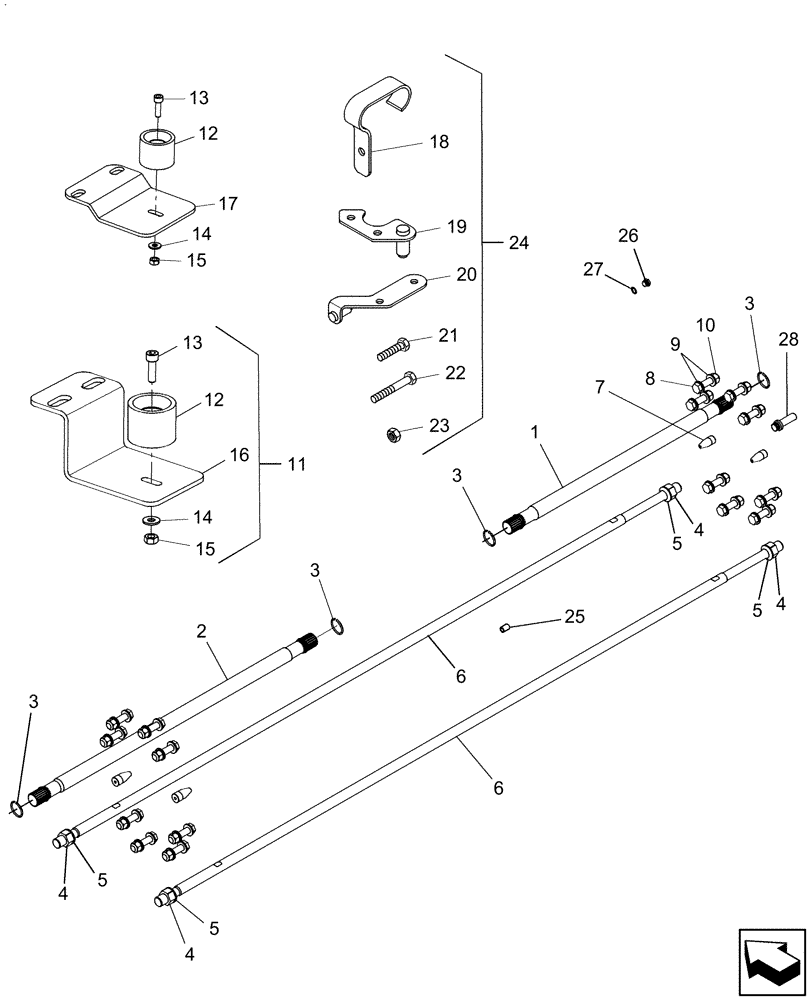

Запчасти Case IH 9120 (41.106.03[02]) - DRIVE SHAFTS AND RODS, TRACK - NA ONLY - 8120, 9120 (41) - STEERING

1

84440957

DRIVE SHAFT

RH; 48.75 in.

1шт.

2

84440951

DRIVE SHAFT

LH; 38.54 in.

1шт.

3

84446910

SNAP RING,M40

4шт.

4

300852

NUT,M30 x 1.5, Cl 8

4шт.

Secure W/Thread Locking Sealant

1шт.

5

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

4шт.

6

84989399

ROD

2шт.

7

84154339

PIN

Tapered Dowel

4шт.

8

87024335

BOLT,Hex, M20 x 80mm, Cl 10.9

16шт.

9

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

10

87024336

NUT,M20 x 2.5, Cl 10

16шт.

11

87485231

PACKAGE,SERVICE

Bracket, Upper; Incl Refs 12 Thru 16

1шт.

12

NSS

NOT SOLD SEPARAT

Fastener, Female Snap

2шт.

13

86512135

HEX SOC SCREW,M6 x 1 x 20mm, Cl 12.9

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

16

NSS

NOT SOLD SEPARAT

Bracket, Upper

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Lower

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket

2шт.

19

87498865

BRACKET

1шт.

20

87498861

BRACKET

1шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

22

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

30шт.

23

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

5шт.

24

87498871

SERVICE KIT

Lower Shielding Modifications; Incl Refs 11 Thru 23

1шт.

25

84038824

BUSHING,9mm ID x 12mm OD x 20mm L

1шт.

26

87282044

PLUG,M18 x 1.5, 28mm L

2шт.

27

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

28

87682412

SCREW,M20 x 60mm, Cl 12.9

Flg 12 PT M20 x 60 CL 12.9

2шт.
