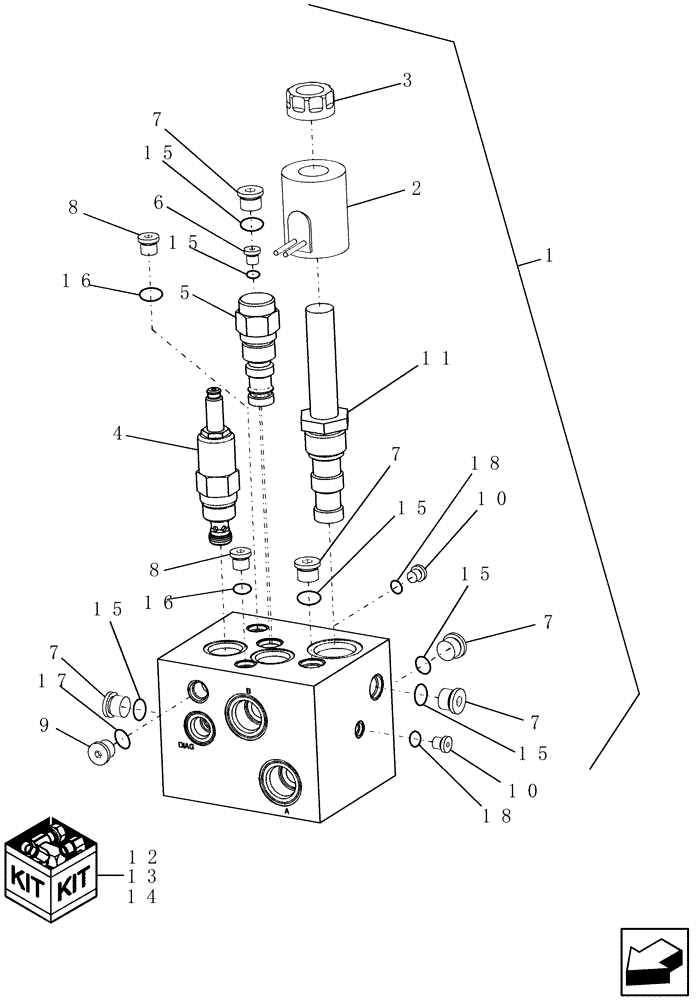

Запчасти Case IH 9120 (35.910.12) - SPREADER CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87482032

HYDRAULIC VALVE

Proportional Spreader

1шт.

2

87434005

COIL ASSY.

Spreader Motor Flow

1шт.

3

87435447

NUT

1шт.

4

299075A1

VALVE, PRESSURE RELI

2800 PSI

1шт.

5

87031239

HYDRAULIC VALVE

Pressure Differential; See Also Ref 13

1шт.

6

87026245

ORIFICE

Incl 15

1шт.

7

218-5209

PLUG,Hex, 9/16"-18 ORB

Incl 15

5шт.

8

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

Incl 16

2шт.

9

218-5208

PLUG,Hex, 1/2"-20 ORB

Incl 17

1шт.

10

218-5205

PLUG,Hex Soc, 5/16"-24 ORB

Incl 18

2шт.

11

87434003

HYDRAULIC VALVE

Spreader Motor Flow Control

1шт.

12

G110098

KIT

Services 4

1шт.

13

87024936

SEAL KIT

Services 5

1шт.

14

87434006

SEAL KIT

Services 11

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

18

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2шт.
