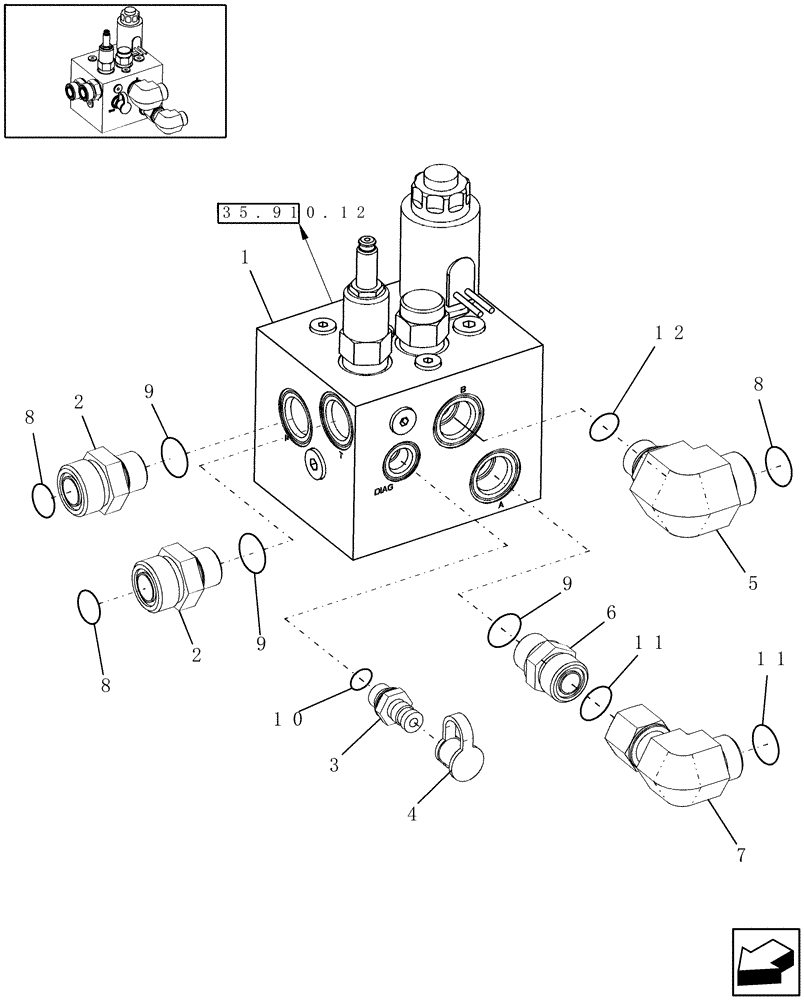

Запчасти Case IH 9120 (35.910.11[01]) - SPREADER CONTROL VALVE, CONNECTORS - PRIOR TO 3/09 (35) - HYDRAULIC SYSTEMS

1

87482032

HYDRAULIC VALVE

Spreader

1шт.

2

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl Refs 8 & 9

2шт.

3

84320565

COUPLING,M14 x 1.5

Incl Ref 10

1шт.

4

86502604

DUST CAP

1шт.

5

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl Refs 8 & 12

1шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl Refs 9 & 11

1шт.

7

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Incl Ref 11

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
