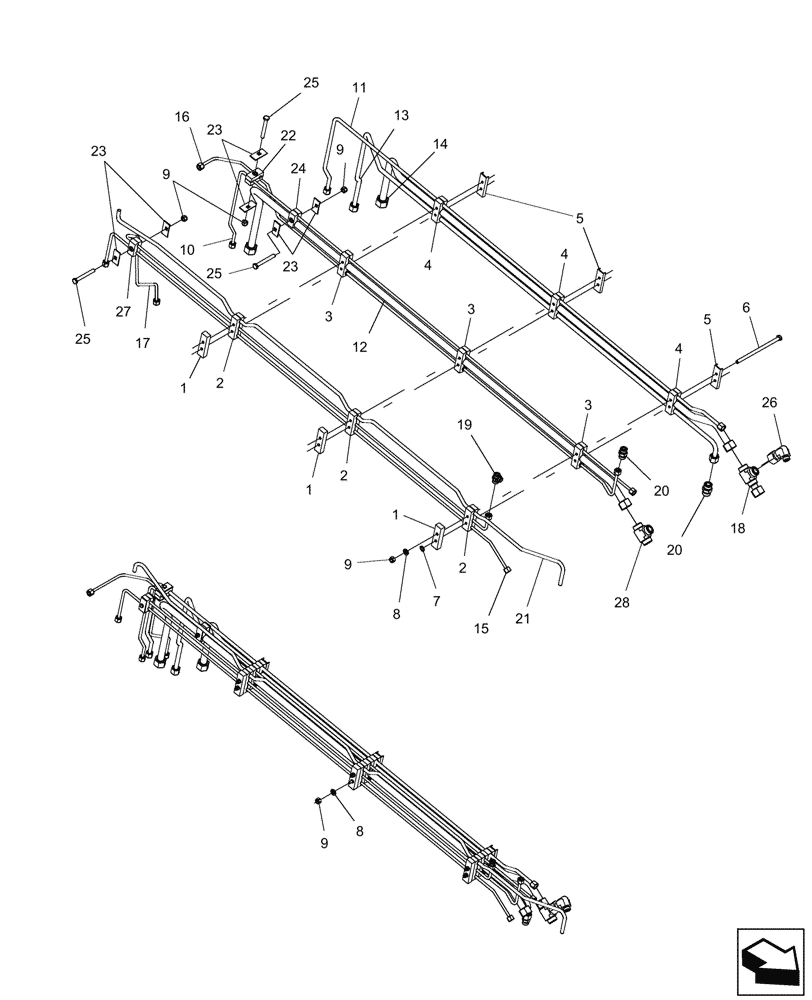

Запчасти Case IH 9120 (35.910.03[03]) - HYDRAULICS - MAIN LINES (35) - HYDRAULIC SYSTEMS

1

86998428

SPACER

Clamp, Tube

3шт.

2

86998371

CLAMP

Hydraulic Tube

3шт.

3

86998372

CLAMP

Hydraulic Tube

3шт.

4

86998373

CLAMP

Hydraulic Tube

3шт.

5

87000242

CHANNEL

Clamp Back-Up

3шт.

6

412422

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

6шт.

7

87012484

SNAP RING,#31, Ext

3шт.

8

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

6шт.

9

832-46408

NUT,M8 x 1.25, Cl 8

9шт.

10

86995857

HYD TUBE,0.375" OD

Load Sense to Steering

1шт.

11

87280106

HYD TUBE

Priority Flow to Steering

1шт.

12

87280105

HYD TUBE,1.00" OD

Extra Flow to Feeder Valve

1шт.

13

87283796

HYD TUBE,0.625" OD

Feeder Lift

1шт.

14

86995869

HYD TUBE,1" OD

Return from Feeder Stack

1шт.

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Used Between Ref 14 And Tee

1шт.

15

86996184

HYD TUBE,7mm ID x 10mm OD x 2209mm OAL

Load Sense from Feeder Valve

1шт.

16

87109922

HYD TUBE,0.625" OD

Drain

1шт.

17

87109749

HYD TUBE,0.375" OD

Regulator, Pressure to Main Stack

1шт.

18

86641295

TEE,1-7/16"-12 ORFS to Swivel

1шт.

19

9840322

TEE,11/16"-16 ORFS

1шт.

20

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

21

84131881

TUBE ASSY.

Wire Harness Support

1шт.

22

87105732

CLAMP

Hydraulic Tube

1шт.

23

87000230

PLATE

Clamp, Hose

6шт.

24

87000142

CLAMP,2 Hoses

Hydraulic Tube

1шт.

25

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

3шт.

26

87105745

ELBOW

Reducer

1шт.

27

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hydraulic Tube

1шт.

28

87280130

TEE

1шт.

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
