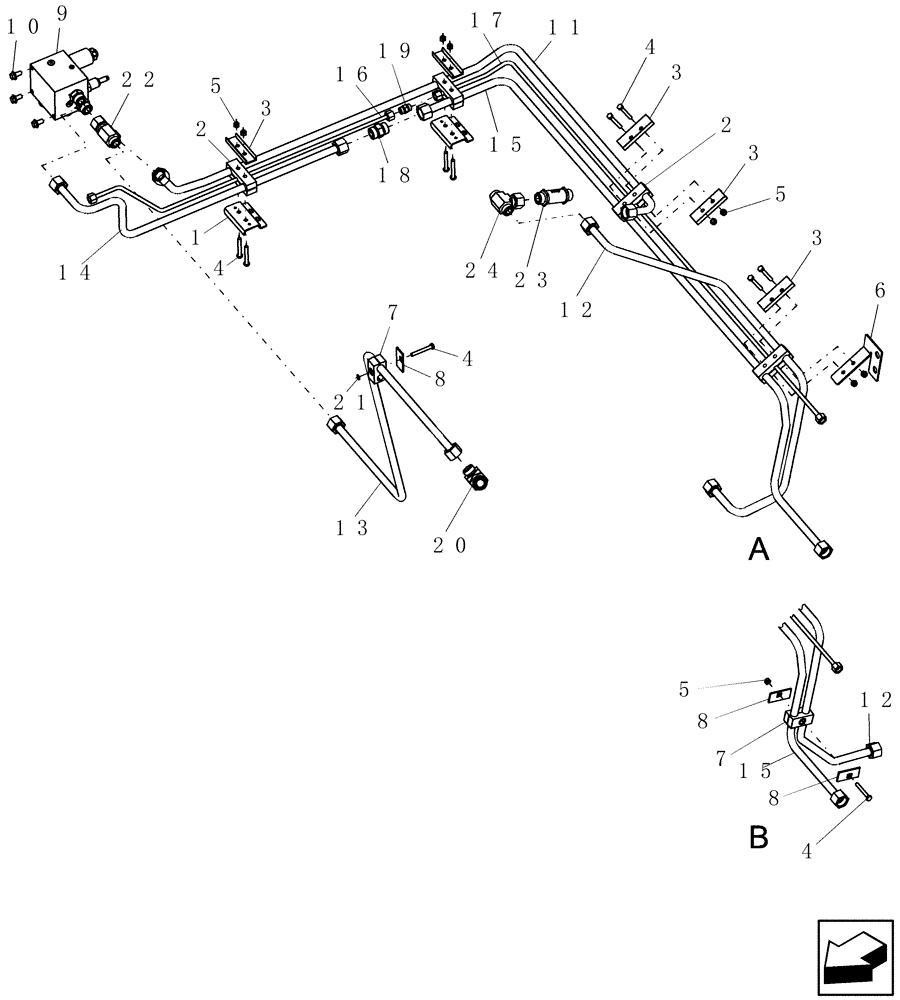

Запчасти Case IH 9120 (35.910.03[02]) - HYDRAULIC TUBES - ENGINE COMPARTMENT (35) - HYDRAULIC SYSTEMS

1

87109755

BRACKET

2шт.

2

86998883

CLAMP

4шт.

3

87000242

CHANNEL

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

10/9шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

9/8шт.

6

87000942

BRACKET

1шт.

7

87000140

CLAMP,Tube, 19.05mm

2/1шт.

8

87000230

PLATE

3/1шт.

9

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

10

274249

BOLT,Hex, M10 x 20mm

3шт.

11

87397355

HYD TUBE,16 mm ID x 20/0.75 mm OD x 939.6, 751.8 mm L

Aux Cooler Bypass

1шт.

12

87482040

HYD TUBE,0.75" OD

Aux Cooler Inlet

1шт.

Prior to 3/1/09

1шт.

12

84169061

HYD TUBE,20 mm OD

Aux Cooler Inlet

1шт.

From 3/1/09

1шт.

13

87397354

HYD TUBE,16 mm ID x 20/0.75 mm OD x 758.5, 109.7 mm L

Cleaning Fan Valve Return

1шт.

14

87000683

HYD TUBE,0.75" OD

Cleaning Fan Valve Press

1шт.

15

87105711

HYD TUBE,0.75" OD

Cleaning Fan Valve Press

1шт.

Prior to 3/1/09

1шт.

15

84166704

HYD TUBE,20 mm OD

Cleaning Fan Valve Press

1шт.

From 3/1/09

1шт.

16

87106690

HYD TUBE,0.375" OD

Cleaning Fan Drain

1шт.

17

87000880

HYD TUBE,10 mm OD x 1605, 220.6 mm L

Cleaning Fan Drain

1шт.

18

84100407

UNION,1-3/16"-12 ORFS

1шт.

19

84431546

UNION,11/16"-16 ORFS

1шт.

20

87000837

TEE

1шт.

21

87012484

SNAP RING,#31, Ext

1шт.

22

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.

23

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1шт.

24

87359490

UNION

Tee

1шт.
