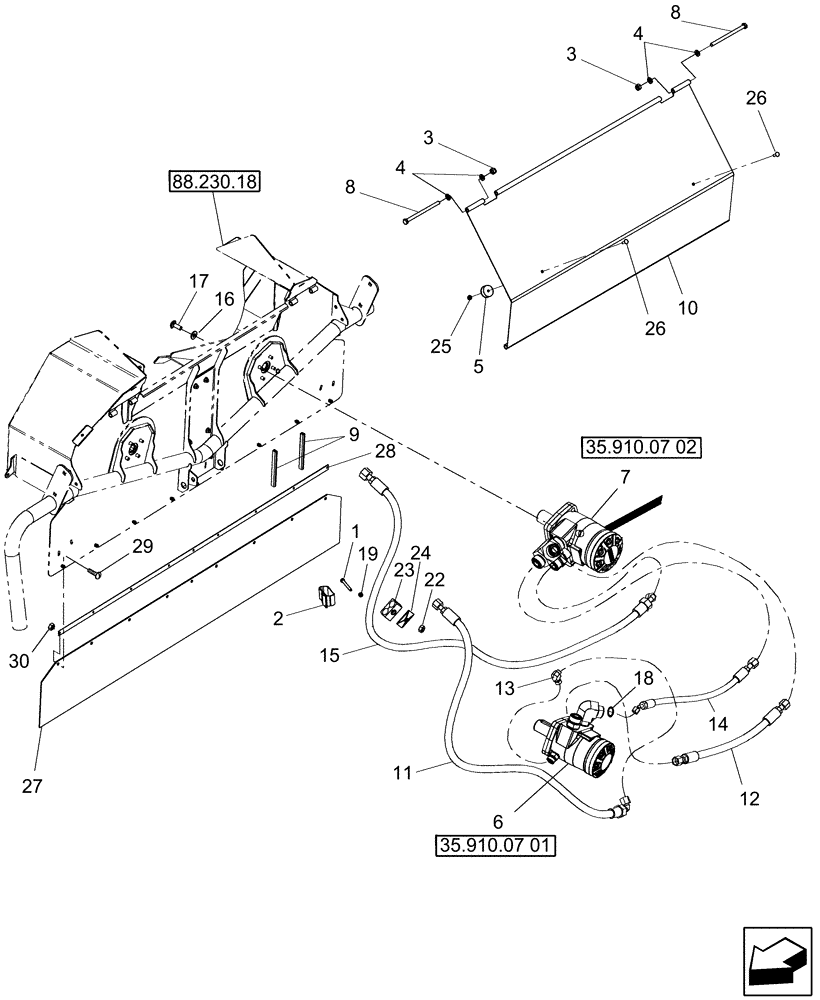

Запчасти Case IH 9120 (35.796.01) - SPREADER, UPPER (35) - HYDRAULIC SYSTEMS

1

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

2

84177788

SECURING STRAP

1шт.

NA & Latin America Only

1шт.

2

87108048

SECURING STRAP

1шт.

EU Only

1шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

5

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

6

87519075

HYDRAULIC MOTOR,74CC

W/Drain

1шт.

87519075R

REMAN-HYD MOTOR

W/Drain

1шт.

87519075C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

87519076

HYDRAULIC MOTOR,74CC

W/Sensor

1шт.

87519076R

REMAN-HYD MOTOR

W/Sensor

1шт.

87519076C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

2шт.

9

87000945

PROTECTION STRIP

2шт.

10

87752502

COVER ASSY

Spreader Access

1шт.

11

87105924

FLEXIBLE HOSE,15.88mm ID x 1780mm L

Pressure, Spreader Motor

1шт.

12

87105926

FLEXIBLE HOSE

Jumper, Spreader, Serial Range: Motor-Motor

1шт.

13

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

14

87282287

FLEXIBLE HOSE

Spreader Motor Drain

1шт.

15

87282286

FLEXIBLE HOSE,16mm ID x 2200mm L

Spreader Motor Return

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

20

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

23

87000924

CLAMP

1шт.

24

87000230

PLATE

Hose Clamp

1шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

26

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

27

87752499

CANVAS

1шт.

28

87000280

STRIP

1шт.

29

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

9шт.

30

353308

NUT,M6 x 1.0, Cl 8

9шт.
