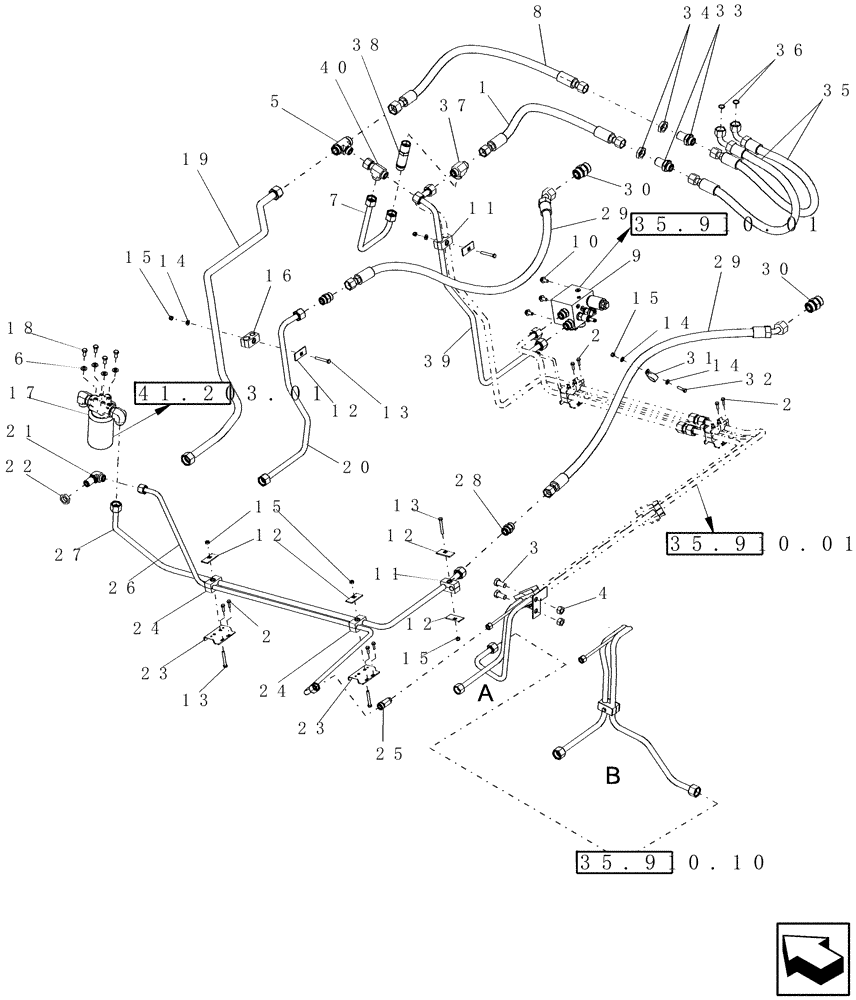

Запчасти Case IH 9120 (35.752.03[03]) - HYDRAULICS - SPREADER AND ROTARY SCREEN DRIVE - 9120 (35) - HYDRAULIC SYSTEMS

1

87646915

HOSE ASSY.

Aux Cooler Inlet

1шт.

2

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

8шт.

3

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

4

100020

NUT,M16 x 2.0, Cl 8

2шт.

5

87000837

TEE

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

87646913

HYD TUBE,0.75" OD

Aux Cooler Bypass

1шт.

8

87646914

HOSE ASSY.

Aux Cooler Return

1шт.

9

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

10

274249

BOLT,Hex, M10 x 20mm

3шт.

11

87000140

CLAMP,Tube, 19.05mm

2шт.

12

87000230

PLATE

6шт.

13

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

5шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

16

87000146

CLAMP

1шт.

17

86998689

HYDRAULIC OIL FILTER

1шт.

18

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

19

87646895

HYD TUBE,25.4 mm OD x 937.7 mm L

Aux Cooler Return

1шт.

20

87646896

HYD TUBE,0.75" OD

Main Cooler Outlet

1шт.

21

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

22

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

23

87109755

BRACKET

2шт.

24

87000144

CLAMP

2шт.

25

87109744

FITTING

1шт.

26

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

1шт.

27

87563491

HYD TUBE,0.75" OD

1шт.

28

84100407

UNION,1-3/16"-12 ORFS

2шт.

29

87646911

HOSE ASSY.

Main Cooler

2шт.

30

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

31

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

33

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

34

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

35

87646890

HOSE ASSY.,19.05mm ID x 1000mm L

Aux Cooler Box; L = 1000 mm

2шт.

36

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

37

87359490

UNION

Tee

1шт.

38

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1шт.

39

87646912

HYD TUBE,0.75" OD

Cleaning Fan Valve Return

1шт.

40

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.
