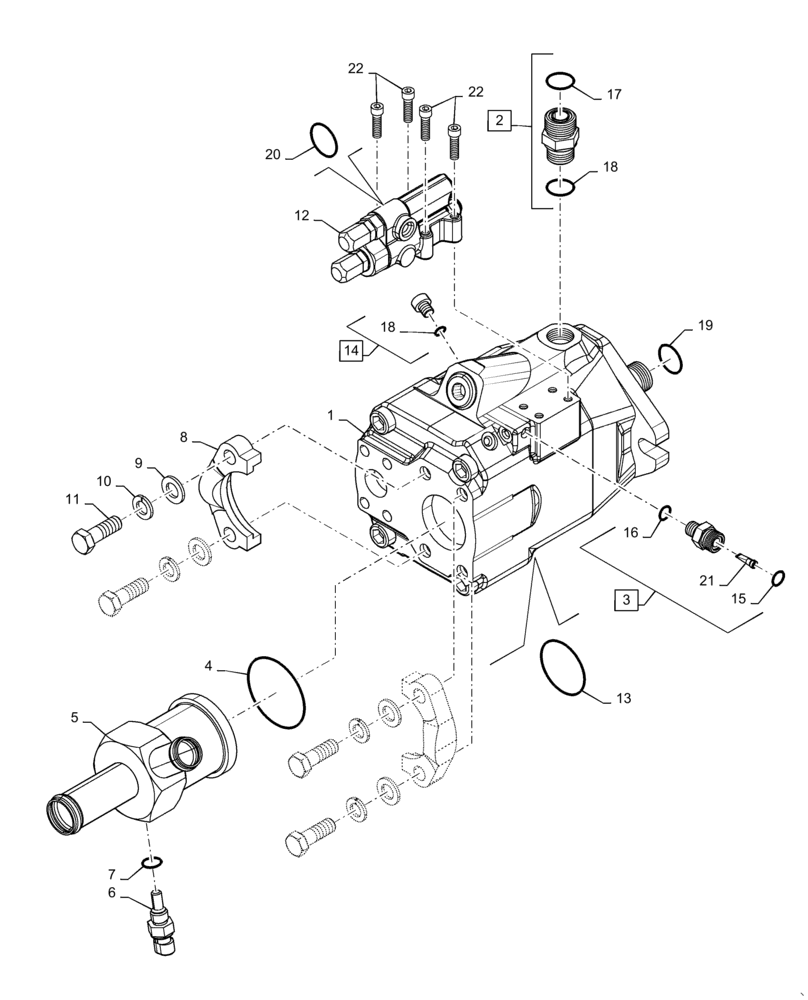

Запчасти Case IH 9120 (35.700.01[01]) - HYDRAULIC PUMP, PFC (35) - HYDRAULIC SYSTEMS

1

87105987

HYDRAULIC PUMP,63 CC

PFC

1шт.

1

87105987R

REMAN-HYD PUMP

PFC

1шт.

1

87105987C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 17 - 18

1шт.

3

334922A1

ADAPTER

Pump W/ Screen, 30 GPH, Incl 15 - 16, 21

1шт.

4

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

5

84267337

HYD CONNECTOR

PFC Suction

1шт.

6

86571273

SENSOR

Temperature

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

86981674

CLAMP

Split Flange, 51mm OD

2шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

12

87360820

CONTROL VALVE

Pressure Regulator

1шт.

13

87010918

SEAL KIT

Services 1

1шт.

14

221579A1

PLUG,M22 x 1.5 ORB

Incl 18

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

19

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

20

87380545

SERVICE KIT

Services 12, Contains 11 Seals

1шт.

21

NSS

NOT SOLD SEPARAT

Screen, Incl in 3

1шт.

22

86512136

HEX SOC SCREW,M6 x 30mm, Cl 12.9

4шт.
