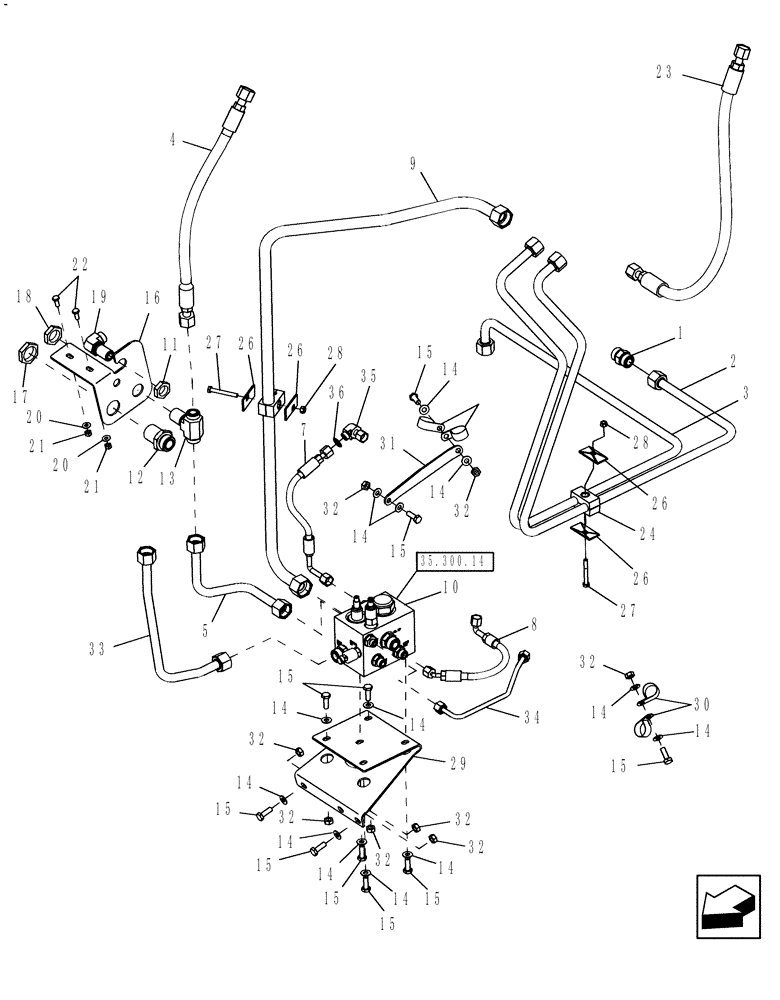

Запчасти Case IH 9120 (35.300.01[02]) - HYDRAULICS LINES, PTO 3 (PTO REGULATOR VALVE) - FROM 4/2009 (35) - HYDRAULIC SYSTEMS

1

84100407

UNION,1-3/16"-12 ORFS

1шт.

2

84166701

HYD TUBE,20 mm OD x 657.3, 282 mm L

Gear Pump to Fan

1шт.

3

84166699

HYD TUBE,20 mm OD

Gear Pump to RAS and Spreaders

1шт.

4

84158714

HOSE ASSY.,15.88mm ID x 630mm L, SAE 100R17

Lube Supply, Tee to Cross, Start Serial: Y9G206208

1шт.

5

87281692

HYD TUBE,0.75" OD

Lube Regulator, Supply to Valve

1шт.

7

84158715

HOSE ASSY.

Drain, from PTO Regulator Valve, Start Serial: Y9G206182

1шт.

8

84176035

HOSE ASSY.

Lube Supply, to Rotor, Start Serial: Y9G206201

1шт.

9

87587910

HYD TUBE,1" OD

PTO Regulator Valve Bypass

1шт.

10

0C

ORDER COMPONENTS

PTO/ Charge Regulator

1шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

87001274

BRACKET

Bulkhead

1шт.

17

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

18

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

19

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

87109746

FLEXIBLE HOSE

Cleaning Fan / Regulator Return

1шт.

24

87000140

CLAMP,Tube, 19.05mm

2шт.

25

87000142

CLAMP,2 Hoses

1шт.

26

87000230

PLATE

Hose Clamp

6шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

29

87284344

BRACKET

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

31

NS

NOT SERVICED

Bracket

1шт.

32

100016

NUT,M10 x 1.5, Cl 8

8шт.

33

87663046

HYD TUBE,.75" OD

Lube RV To Filter

1шт.

34

87657700

HYD TUBE,.375" OD

PTO Regulator Valve To Clutches, Serial Range: -Y9G207865

1шт.

34

84218078

HYDRAULIC HOSE

, Start Serial: Y9G207865

1шт.

35

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl Ref 6

1шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
