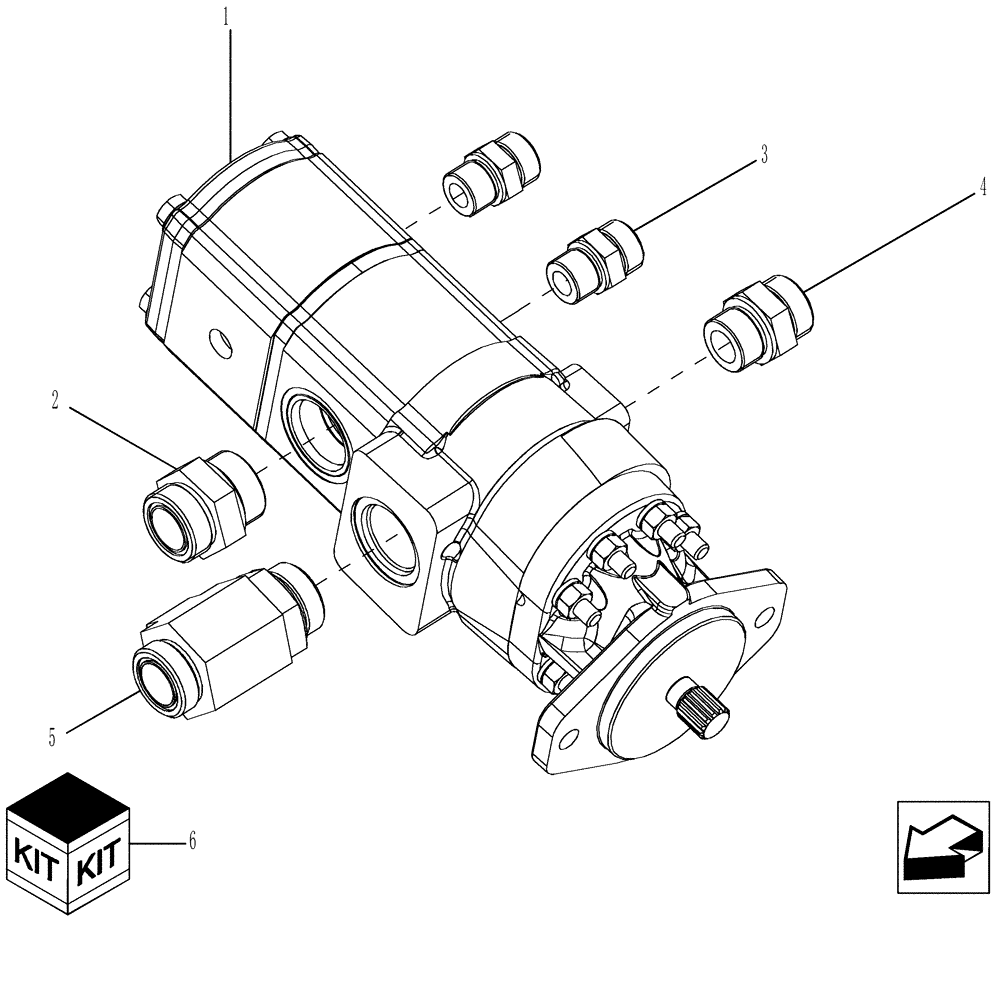

Запчасти Case IH 9120 (35.220.03[02]) - PUMP, TRIPLE GEAR, ASN Y9G207763 (35) - HYDRAULIC SYSTEMS

1

84258982

HYDRAULIC PUMP,62 CC

1шт.

84258982R

REMAN-HYD PUMP

8120 ASN Y9G207763 (9/08-2/12)

1шт.

84258982C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

3

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

5

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

1шт.

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

6

87284671

SEAL KIT

Seal Kit

1шт.

7

84272273

HYDRAULIC PUMP

Tandem Pump

1шт.
