Запчасти Case IH 9120 (35.204.11) - FILTERS AND MAIN STACK VALVE (35) - HYDRAULIC SYSTEMS

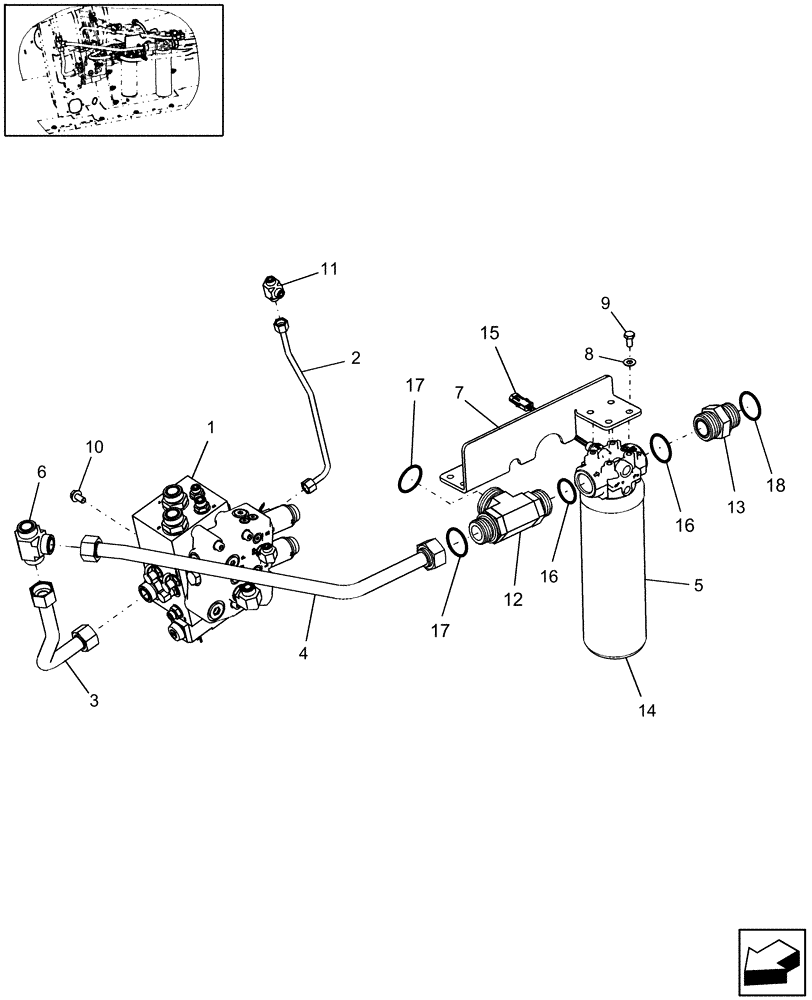

Схема запчастей Case IH 9120 - (35.204.11) - FILTERS AND MAIN STACK VALVE (35) - HYDRAULIC SYSTEMS
1
17
5
7
8
14
17
3
11
16
6
18
15
12
4
2
9
13
16
10

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Valve, Main Stack

1шт.

2

86995855

HYD TUBE

Load Sense from Main Valve

1шт.

3

86995864

HYD TUBE,1" OD

Return from Main Valve Stack

1шт.

4

86995867

HYD TUBE,1" OD

PFC Return to Filter

1шт.

5

86998593

HYDRAULIC OIL FILTER

Aux Return to Reservoir, 17.4" long

1шт.

6

86705422

TEE

1шт.

7

87284938

STRAP

Mounting, Ref #5

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

274249

BOLT,Hex, M10 x 20mm

3шт.

11

9840322

TEE,11/16"-16 ORFS

1шт.

12

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

1шт.

13

84159338

ADAPTER

Adapter Str Beaded Tube 1.25 OD x M42

1шт.

14

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

Element, 14.4" long

1шт.

15

87447716

SWITCH

Indicator, Filter Bypass

1шт.

16

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

18

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
