Запчасти Case IH 9120 (35.204.05) - VALVE, FEEDER STACK W/ LATERAL TILT (35) - HYDRAULIC SYSTEMS

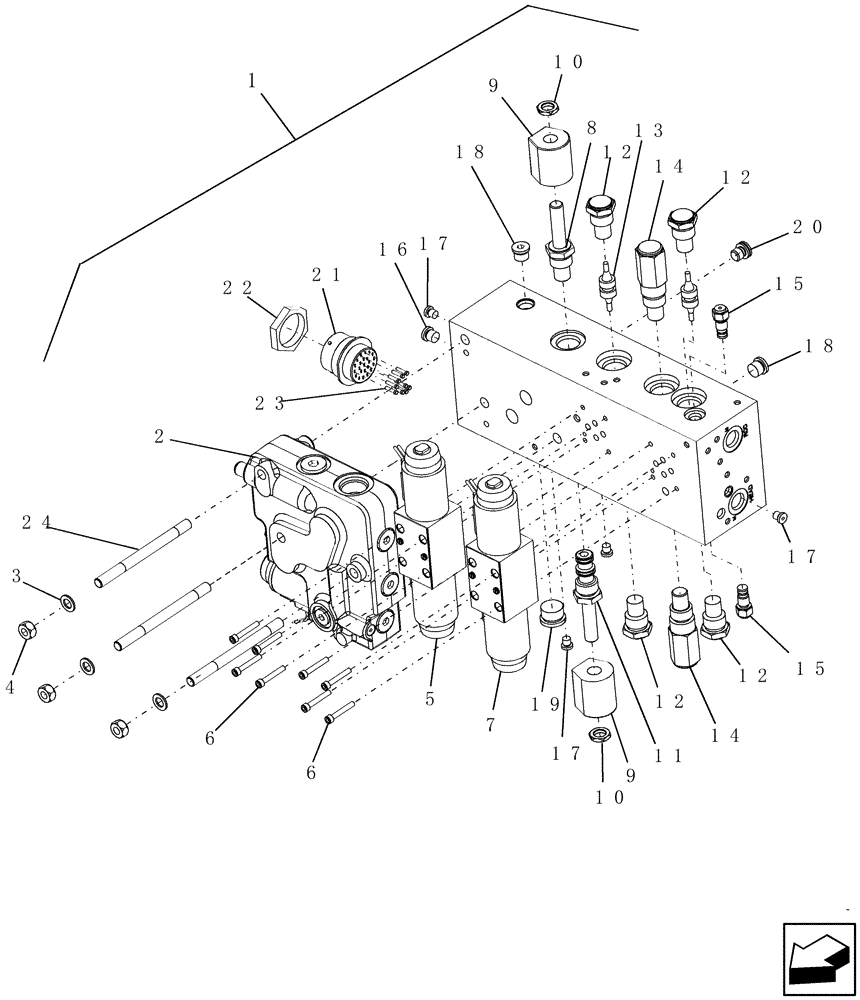

Схема запчастей Case IH 9120 - (35.204.05) - VALVE, FEEDER STACK W/ LATERAL TILT (35) - HYDRAULIC SYSTEMS
10
22
2
12
16
20
14
12
6
3
17
17
1
12
18
19
9
9
15
8
18
15
4
12
21
10
13
24
11
7
6
5
14
17
23

Артикул

Название

Примечание

Количество

1

87109742

HYDRAULIC VALVE

1шт.

2

87281778

VALVE

Reel Drive

1шт.

2

87281778R

REMAN-HYD VALVE

Reel Drive

1шт.

2

87281778C

CORE-VALVE HYD

Return Number

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

87434014

CONTROL VALVE

Reel Fore/ Aft, Three Position, Four Way

1шт.

6

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

8шт.

7

86995306

VALVE

Lateral Tilt, Three Position, Four Way

1шт.

7

86995306R

REMAN-HYD VALVE

Lateral Tilt, Three Position, Four Way

1шт.

7

86995306C

CORE-VALVE HYD

Return Number

1шт.

8

87436627

VALVE

Reel Lower

1шт.

9

86995302

SOLENOID

Coil, 12 V, Reel Lift/ Reel Lower

2шт.

10

195683A1

JAM NUT,1/2"-20

2шт.

11

190711A1

VALVE

Reel Lift

1шт.

12

87433998

CHECK VALVE,7/8" - 14

2 - 5 PSI

4шт.

13

149940C1

PISTON

2шт.

14

190986A1

VALVE PRESSURE RELIE,7/8" - 14

3000 PSI

2шт.

15

190704A1

CHECK VALVE

30 PSI

2шт.

15a

190707A1

SEAL KIT

Services 15

2шт.

16

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

17

86632547

PLUG,Hex, 5/16"-24 ORB

4шт.

18

9625178

PLUG,9/16" - 18 ORB

2шт.

19

86625138

PLUG,7/18" - 14

1шт.

20

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

21

319151A1

CONNECTOR, ELEC

CONNECTOR

1шт.

22

86619907

NUT,1.6875"-18

1шт.

23

453133C1

PLUG

9шт.

24

190716A1

STUD

3шт.

Выбрано товаров: 29
