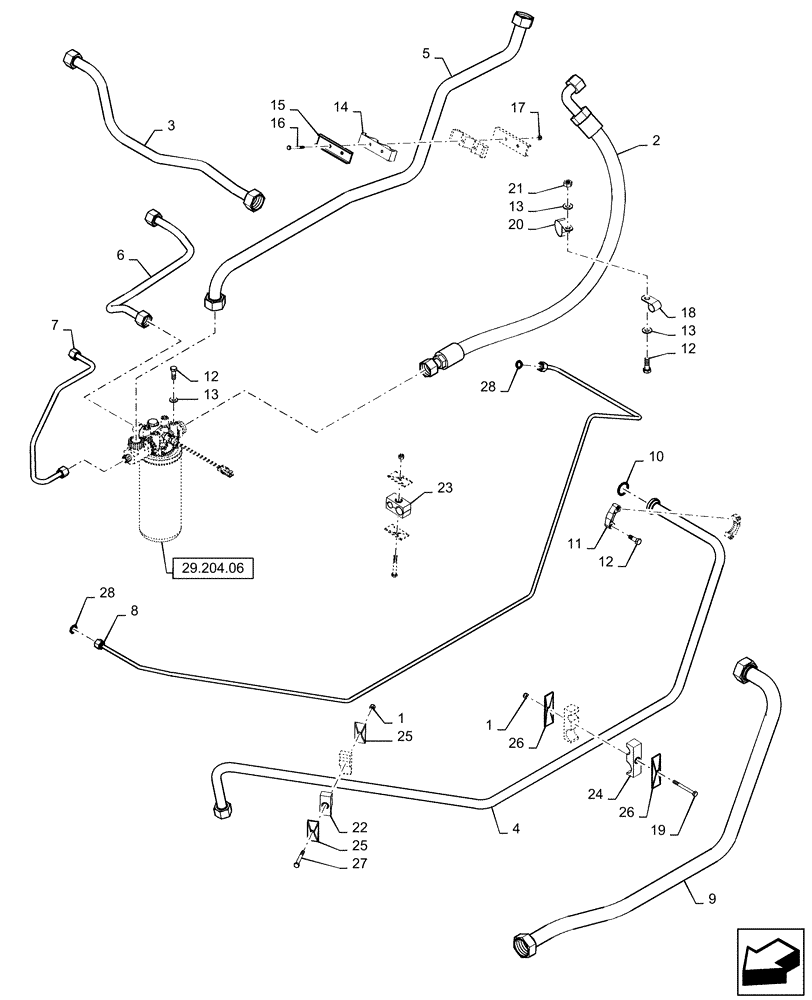

Запчасти Case IH 9120 (35.203.02) - HYDRAULIC LINES, PTO 2 (35) - HYDRAULIC SYSTEMS

1

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

2

87283082

FLEXIBLE HOSE

Charge Pump To Filter

1шт.

3

86996178

HYD TUBE,1" OD

Gear Flow To Filter

1шт.

4

87721406

TUBE,1" OD

PFC To Main Valve

1шт.

5

87670280

HYD TUBE,32 mm OD x 538.5 mm L

Charge Filter To Manifold

1шт.

6

87657698

HYD TUBE,0.75" OD

Charge Filter Bypass

1шт.

7

87657697

HYD TUBE,0.5" OD

Charge Filter To Valve

1шт.

8

87284930

HYD TUBE,0.375" OD

Load Sense To Rexroth PFC

1шт.

8

84222269

TUBE

PFC Load Sense, If Used, Used With 84250583, Replaces 87284930

1шт.

8

84250583

HOSE ASSY.,6.35mm ID x 550mm L, SAE 100R17

PFC Pump To Load Sense Tube 84222269, If Used, Replaces 87284930

1шт.

9

84157589

HYD TUBE,38 mm OD

Filter To Rexroth PFC, Serial Range: -Y9G207865

1шт.

9

84159425

HYDRAULIC HOSE

, Start Serial: Y9G207865

1шт.

10

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

11

86980728

COLLAR CLAMP

2шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

9шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

455533

CLAMP

2шт.

15

87283294

CHANNEL

2шт.

16

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

17

353308

NUT,M6 x 1.0, Cl 8

2шт.

18

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

19

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

20

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

100016

NUT,M10 x 1.5, Cl 8

1шт.

22

87000142

CLAMP,2 Hoses

25.4 x 9.52

4шт.

23

87000146

CLAMP

25.4 x 19.05

2шт.

24

84214028

HOSE CLAMP

25.4 x 42

1шт.

25

87000230

PLATE

12шт.

26

87000231

PLATE

4шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

6шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
