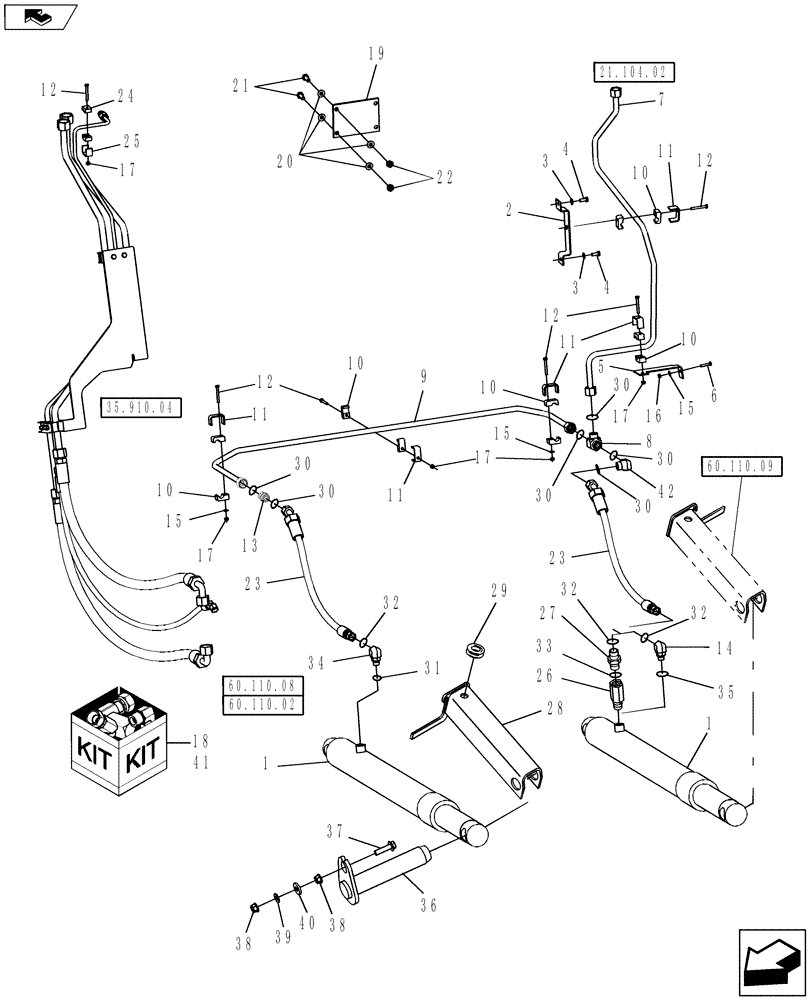

Запчасти Case IH 9120 (35.162.02) - HYDRAULICS - FEEDER LIFT (35) - HYDRAULIC SYSTEMS

1

87282426

HYDRAULIC CYLINDER,75mm Rod, 525mm Stroke

Feeder Lift; Standard; Rod Dia. = 75 mm

2шт.

87282426R

REMAN-HYD CYLINDER

7120 (9/08-2/12), 8120, 9120, Both (9/08-)

2шт.

87282426C

CORE-HYD CYLINDER

Return Number

1шт.

1

87728497

CYLINDER ASSY.

Feeder Lift; Heavy Duty; Rod Dia. = 90 mm

2шт.

84263630R

REMAN-HYD CYLINDER

7120 (9/08-2/12), 8120 (9/08-), Reman for New P/N 87728497

2шт.

84263630C

CORE-HYD CYLINDER

Return Number

1шт.

2

87281787

SUPPORT TUBE

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

87108132

SUPPORT

Feeder Lift, Case Drain Tubes

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

7

87000416

HYD TUBE,0.625" OD

Feeder Lift, Mid

1шт.

7120 Only

1шт.

7

87000417

HYD TUBE,0.625" OD

Feeder Lift, Mid

1шт.

8120 & 9120 Only

1шт.

8

84989665

TEE,1"-14 ORFS

1шт.

9

87000418

HYD TUBE,0.625" OD

Feeder Lift, Lower

1шт.

7120 Only

1шт.

9

87000419

HYD TUBE,0.625" OD

Feeder Lift, Lower

1шт.

8120 & 9120 Only

1шт.

10

433007

CLAMP

10шт.

11

433100

SUPPORT

5шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

13

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

1шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl Refs 32 & 35, As Indicated

1шт.

For Use W/Standard Cylinder

1шт.

14

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

Incl Refs 32 & 35, As Indicated

1шт.

For Use W/Heavy Duty Cylinder

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

9706755

NUT,M6, Cl 8

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

87031097

SEAL KIT

Feeder Lift Cylinder, Std; Services 87282426

1шт.

18

87755975

SEAL KIT

Feeder Lift Cylinder, HD; Services 87728497

1шт.

19

87397379

PLATE

Mounting

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

100016

NUT,M10 x 1.5, Cl 8

2шт.

23

87105740

FLEXIBLE HOSE,12.5mm ID x 625mm L

Feeder Lift Cylinder

2шт.

24

433008

CLAMP

2шт.

25

442340

SUPPORT

1шт.

26

84442647

SAFETY VALVE

1шт.

EU Only

1шт.

27

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

1шт.

EU Only

1шт.

For Use W/Standard Cylinder

1шт.

28

87564963

CHANNEL

1шт.

EU Only

1шт.

28

87564959

CHANNEL

Feeder Lift, Standard

1шт.

28

87732739

CHANNEL

Feeder Lift, Heavy Duty

1шт.

29

87107921

GROMMET,19mm ID x 41mm OD x 30mm Thk

1шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

34

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl Refs 31 & 32

1шт.

35

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Component Of Elbow 86579691

1шт.

35

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Component Of Elbow 86579692

1шт.

36

87282445

PIN,41.27mm OD x 218mm L

Yellow Chrome; For Use W/Standard Duty Cylinder

4шт.

36

87471285

PIN ASSY.,202mm OAL

Black Chrome; For Use W/Heavy Duty Cylinder

4шт.

37

9804263

BOLT,M10 x 49.2mm, Cl 8.8

4шт.

38

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

40

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

4шт.

41

87751028

DIA KIT, HARVESTER

Heavy Duty Feeder Lift, Includes Ref 1(2), Ref 36(4)

1шт.

NA

1шт.

41

84134532

SERVICE KIT

Heavy Duty Feeder Lift, Includes Ref 1(2), Ref 36(4)

1шт.

EU

1шт.

42

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Incl Ref 30, begin PIN Y8G205004

1шт.

7120 Only

1шт.
