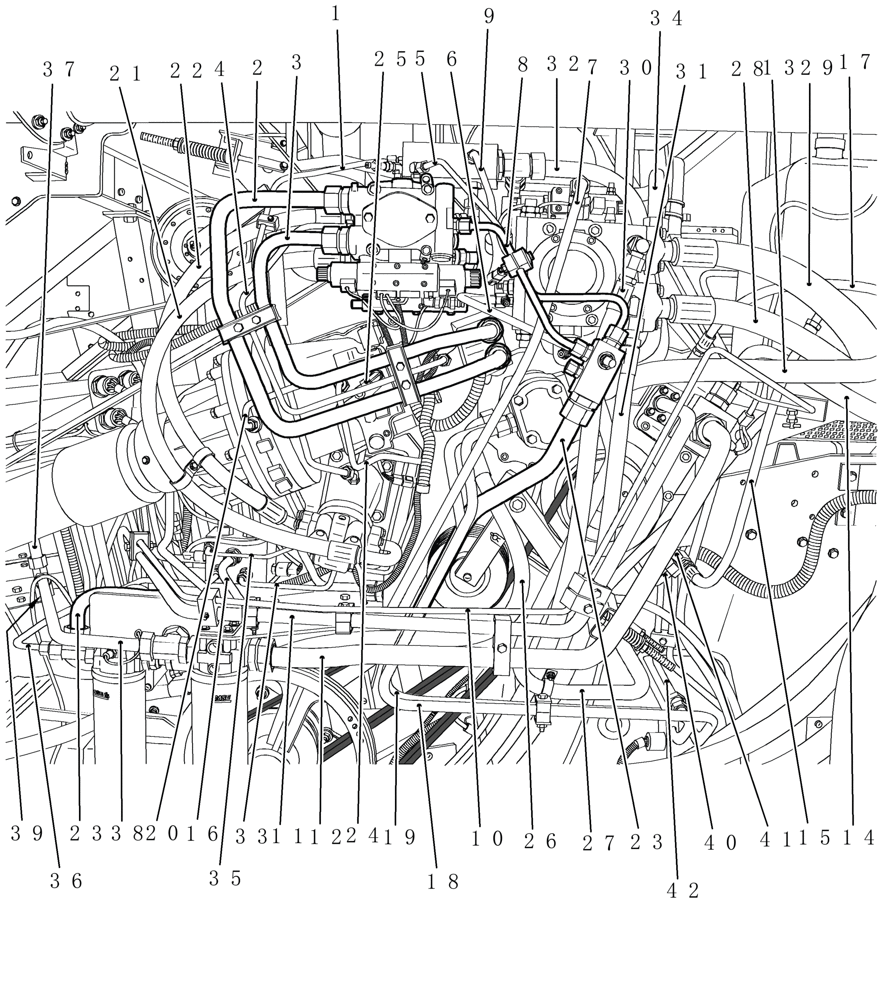

Запчасти Case IH 9120 (35.000.00[02]) - SECTION INDEX - HYDRAULICS, ENGINE GEARBOX (35) - HYDRAULIC SYSTEMS

1

87587907

HYD TUBE,0.5" OD

Return Manifold to Rotor Motor, Shown on 35.203.01 as Ref. 22

1шт.

2

87587892

HYD TUBE,1" OD

Feeder Pump to Feeder-Header Motor, Shown on 35.204.01 as Ref. 12

1шт.

3

87587898

HYD TUBE,1" OD

Feeder Pump to Feeder-Header Motor, Shown on 35.204.01 as Ref. 13

1шт.

4

87587899

HYD TUBE,0.5" OD

Feeder Pump to Feeder-Header Motor, Shown on 35.204.01 as Ref. 14

1шт.

5

87709559

HYD TUBE,0.5" OD

Charge to Rotor Pump, Shown on 35.203.01 as Ref. 12

1шт.

6

84131660

TUBE ASSY.

Charge to Propulsion Pump, Shown on 35.203.01 as Ref. 11

1шт.

7

87641636

HYD TUBE,0.75" OD

Lube to Filter, Shown on 35.203.01 as Ref. 17

1шт.

8

87709560

HYD TUBE

Feeder Pump, Shown on 35.204.01 as Ref. 20

1шт.

9

87686069

HOSE ASSY.

Feeder Pump Drain, Shown on 35.204.01 as Ref. 23

1шт.

10

87284930

HYD TUBE,0.375" OD

Load Sense to PFC Pump, Shown on 35.203.02 as Ref. 8

1шт.

11

87721406

TUBE,1" OD

PFC to Main Valve, Shown on 35.203.02 as Ref. 4

1шт.

12

84159425

HYDRAULIC HOSE

Filter to PFC Pump, Shown on 35.203.02 as Ref. 9

1шт.

13

86999153

FLEXIBLE HOSE

Gear Pump Suction, Shown on 35.300.09(02) as Ref. 9

1шт.

14

86999154

FLEXIBLE HOSE

PFC Pump Suction, Shown on 35.300.09(02) as Ref. 8

1шт.

15

87109746

FLEXIBLE HOSE

Cleaning Fan/Regulator Return, Shown on 35.300.01(01) as Ref. 23

1шт.

16

87657698

HYD TUBE,0.75" OD

Charge Filter Bypass, Shown on 35.203.02 as Ref. 6

1шт.

17

86999156

FLEXIBLE HOSE

PFC Pump Drain, Shown on 35.300.09(02) as Ref. 7

1шт.

18

87284932

HYD TUBE,0.75" OD

Gear Pump to Fan, Shown on 35.300.01(01) as Ref. 2

1шт.

19

87482034

HYD TUBE,0.75" OD

Gear Pump to RAS and Spreaders, Shown on 35.300.01(01) as Ref. 6

1шт.

20

86995995

HYD TUBE,0.375" OD

Feeder Clutch Pressure, Shown on 35.204.01 as Ref. 19

1шт.

21

87314311

FLEXIBLE HOSE,19mm ID x 1200mm L

Rotor Drive "A", Shown on 35.203.01 as Ref. 21

1шт.

22

87314312

FLEXIBLE HOSE

Rotor Drive "B", Shown on 35.203.01 as Ref. 20

1шт.

23

87670280

HYD TUBE,32 mm OD x 538.5 mm L

Charge Filter to Manifold, Shown on 35.203.02 as Ref. 9

1шт.

24

86995885

HYD TUBE,0.50" OD

Feeder Clutch Lube Supply, Shown on 35.203.01 as Ref. 18

1шт.

25

86995872

HYD TUBE,0.375" OD

Rotor Clutch Regulated Supply, Shown on 35.203.01 as Ref. 19

1шт.

26

87283082

FLEXIBLE HOSE

Charge Pump to Filter, Shown on 35.203.02 as Ref. 2

1шт.

27

87563478

HYD TUBE,1.25" OD

Hydrualic Pump, PTO 1, Shown on 35.203.01 as Ref. 53

1шт.

28

87644755

HOSE ASSY.,31.5mm ID x 5400mm L

Ground Drive High Pressure, Shown on 29.204.05 as Ref. 2

1шт.

29

84162945

HOSE ASSY.,31.5mm ID x 5280mm L

Ground Drive High Pressure, Shown on 29.204.05 as Ref. 2, Start Serial: Y9G206770

1шт.

29

87644755

HOSE ASSY.,31.5mm ID x 5400mm L

Ground Drive High Pressure, Shown on 29.204.05 as Ref. 2, Serial Range: -Y9G206770

1шт.

30

87644662

FLEXIBLE HOSE,19.05mm ID x 4400mm L, SAE 100R15

PRA Pressure "B", Shown on 44.200.09 as Ref. 5

1шт.

31

87644661

HOSE ASSY.,19.05mm ID x 4265mm L, SAE 100R15

PRA Pressure "A", Shown on 44.200.09 as Ref. 4

1шт.

32

87703253

TUBE,1.25" OD

Lube and Charge Pump Connector, Shown on 35.203.01 as Ref. 13

1шт.

33

84176035

HOSE ASSY.

Lube Supply, Shown on 35.300.01(02) as Ref. 8

1шт.

34

87641633

HYD TUBE,1.25" OD

Ground Drive Pump Drain, Shown on 35.203.01 as Ref. 16

1шт.

35

87657700

HYD TUBE,.375" OD

PTO Regulator Valve to Clutches, Shown on 35.300.01(02) as Ref. 34

1шт.

36

87657697

HYD TUBE,0.5" OD

Charge Filter to Valve, Shown on 35.203.02 as Ref. 7

1шт.

37

86995869

HYD TUBE,1" OD

Return from Feeder Stack, Shown on 21.104.02 as Ref. 14

1шт.

38

86995867

HYD TUBE,1" OD

PFC Return to Filter, Shown on 35.204.11 as Ref. 7

1шт.

39

86995864

HYD TUBE,1" OD

Return from Main Valve Stack, Shown on 35.204.11 as Ref. 3

1шт.

40

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Spreader and Rotary Screen, Shown on 35.752.03(03) as Ref. 26

1шт.

41

87000880

HYD TUBE,10 mm OD x 1605, 220.6 mm L

Cleaning Fan Drain "C", Shown on 35.910.03(01) as Ref. 17

1шт.

42

87105711

HYD TUBE,0.75" OD

Cleaning Fan Valve Pressure "A", Shown on 35.910.03(01) as Ref. 15

1шт.
