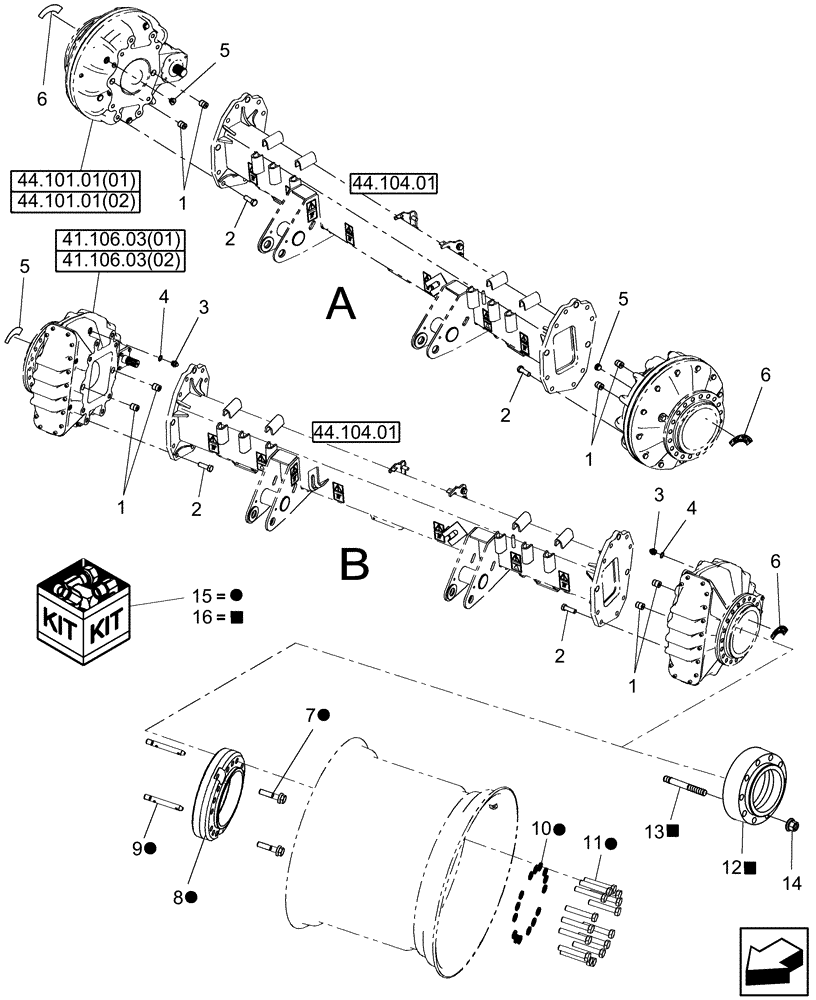

Запчасти Case IH 9120 (25.310.04) - FINAL DRIVE, MOUNTING HARDWARE (DELAYED) (25) - FRONT AXLE SYSTEM

1

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

2

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

16шт.

3

386287

BREATHER

2шт.

4

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

5

84817215

PLUG,3/4"

2шт.

6

87563204

DECAL

Front Wheel Bolt Torque

2шт.

7

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

4шт.

8

87398579

SPACER

2шт.

9

87283521

STUD,M22 x 180

4шт.

10

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

30шт.

11

87515082

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

30шт.

12

84989374

SPACER

2шт.

13

84989380

STUD,M22 x 192

20шт.

14

748961

WHEEL NUT

20шт.

15

87515533

SERVICE KIT

Wheel Spacer

1шт.

EU Only

1шт.

16

84060286

DIA KIT, HARVESTER

Wheel Spacer

1шт.

NA Only

1шт.
