Запчасти Case IH 9120 (25.310.03[01]) - FINAL DRIVE, STANDARD (25) - FRONT AXLE SYSTEM

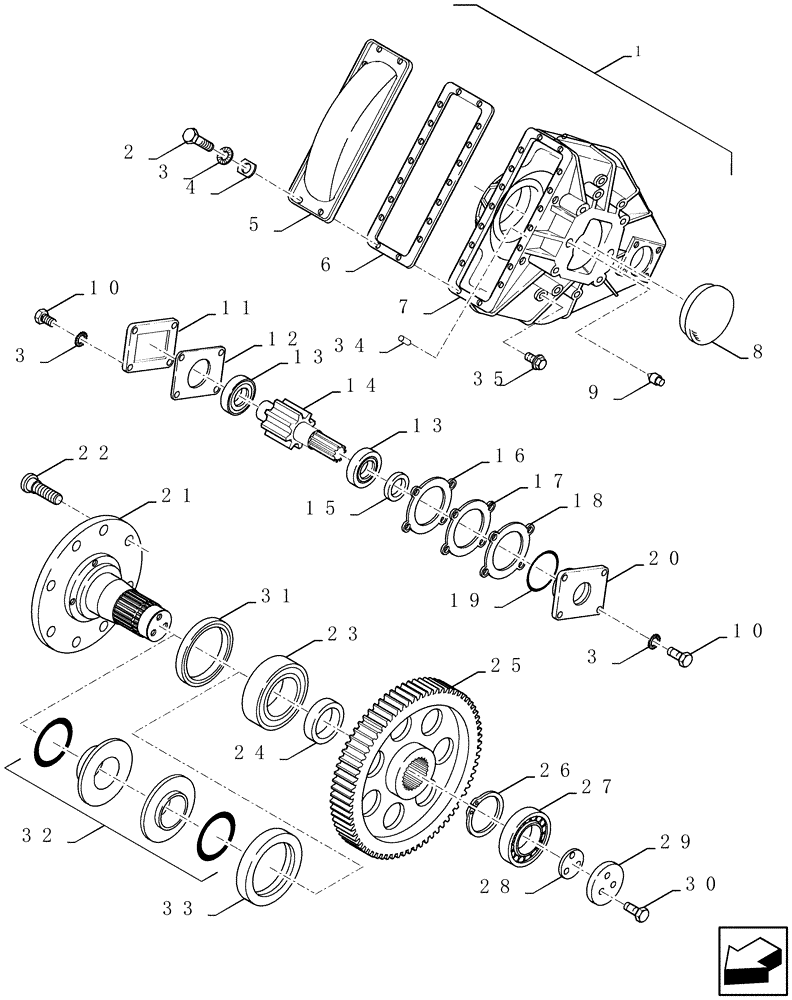

Схема запчастей Case IH 9120 - (25.310.03[01]) - FINAL DRIVE, STANDARD (25) - FRONT AXLE SYSTEM
3
27
23
4
29
8
6
7
13
11
21
30
22
28
10
31
15
19
34
25
14
10
3
32
18
1
20
12
35
13
9
3
33
2
5
24
16
26
17

Артикул

Название

Примечание

Количество

1

87283789

FINAL DRIVE

11/111 Drive, Standard, NA Standard

1шт.

1

87283789R

REMAN-FINAL DRIVE

11/111 Drive, Standard, NA Standard

1шт.

1

87283789C

CORE- FINAL DRIVE

Return Number

1шт.

1

87283832

GEAR REDUCTION UNIT

Final Drive, 11/111, EU Mud -- NLA, Order Components

1шт.

2

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

18шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

26шт.

4

743794

WASHER,11mm ID x 35mm OD x 3mm Thk

18шт.

5

84129520

COVER

1шт.

6

NS

NOT SERVICED

Replace W/Liquid Gasket

1шт.

7

84814360

HOUSING

Standard, NA

1шт.

7

84814362

HOUSING

Mud, EU

1шт.

8

613201

COVER,153.5mm OD x 42.1mm W

1шт.

9

626826

DOWEL,29.92mm OD x 35.1mm L

2шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

84074600

FLANGE

1шт.

12

410920

GASKET,0.9mm Thk

1шт.

13

86975647

TAPERED BEARING,41.27mm ID x 85.72mm OD x 30.16mm W

2шт.

14

84069419

SHAFT

1шт.

15

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

16

382948

SHIM,89.7mm ID x 108mm OD x 0.05mm Thk

1шт.

17

382949

SHIM,89.7mm ID x 108mm OD x 0.2mm Thk

1шт.

18

382950

SHIM,89.7mm ID x 108mm OD x 0.5mm Thk

1шт.

19

913107

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

20

84074599

FLANGE

1шт.

21

87392841

FLANGE

Standard, NA

1шт.

21

87392845

FLANGE

Mud, EU

1шт.

22

87282493

STUD,M22 x 1.5 x 84mm

10шт.

23

86975648

TAPERED BEARING,104.78mm ID x 180.98mm OD x 47.63mm W

1шт.

24

84814999

SPACER,105.01mm ID x 114.81mm OD x 39.22mm L

1шт.

25

84069418

GEAR,111T

1шт.

26

613200

SPACER,M84 ID x 98.5mm OD x 4.6mm H

1шт.

27

86975646

TAPERED BEARING,82.55mm ID x 139.99mm OD x 36.51mm W

1шт.

28

395393

SHIM,45mm ID x 75mm OD x 0.5mm Thk

1шт.

28

395392

SHIM,45mm ID x 75mm OD x 0.2mm Thk

1шт.

28

395391

SHIM,45mm ID x 75mm OD x 0.05mm Thk

1шт.

29

382503

WASHER,Special, 17mm ID x 95mm OD x 14mm Thk

1шт.

30

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

3шт.

31

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

32

89509555

SEAL KIT

, Serial Range: -`0

1шт.

For EU Mud Only

1шт.

33

89818670

RING

, Serial Range: -`0

1шт.

For EU Mud Only

1шт.

34

86978768

DOWEL,M12 x 30mm L

2шт.

35

412413

PLUG,M18 X 1.5

2шт.

Выбрано товаров: 44
