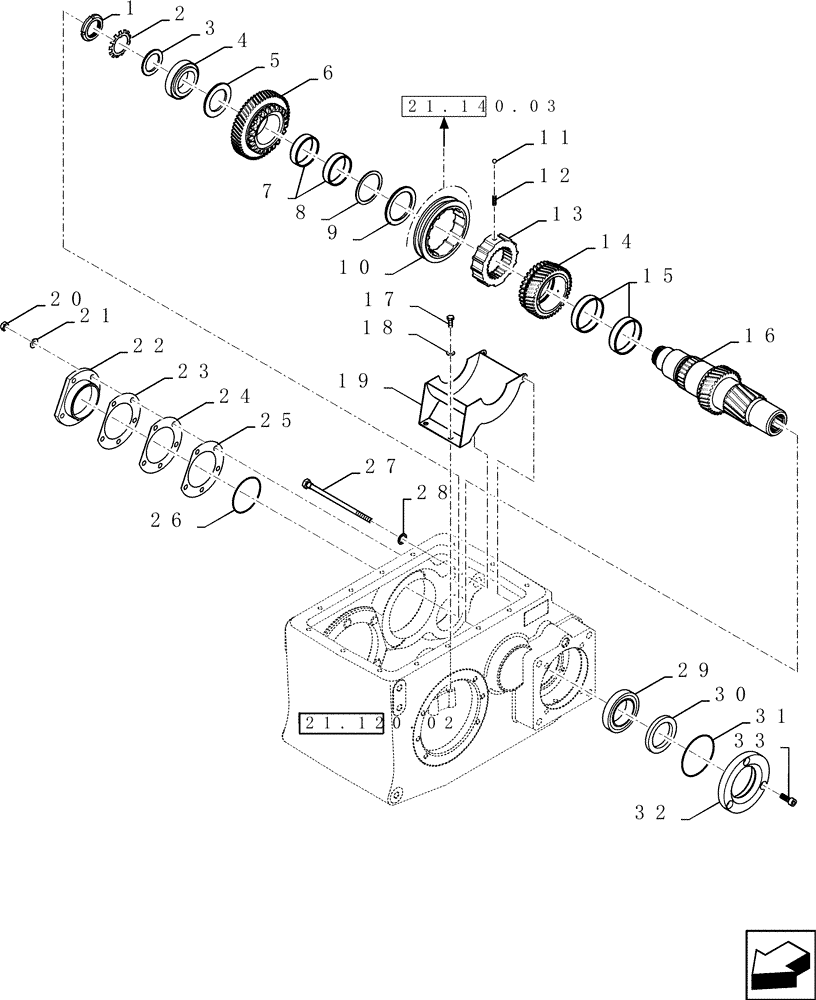

Запчасти Case IH 9120 (21.145.01) - MECHANICAL TRANSMISSION, INPUT SHAFT (21) - TRANSMISSION

1

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

1шт.

2

80410880

LOCKING RING

1шт.

3

84071395

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

4

853116

TAPERED BEARING

1шт.

5

84071394

THRUST WASHER,55mm ID x 85mm OD x 4.75mm Thk

1шт.

6

84435944

GEAR

4th Gear

1шт.

7

87317816

BEARING SET,68mm ID x 74mm OD x 40mm W

1шт.

8

84078051

SNAP RING,M72, Ext

1шт.

9

84072052

THRUST WASHER,72mm ID x 95mm OD x 5.25mm Thk

1шт.

10

84433358

SYNCHRONIZER

1шт.

11

84041521

BALL

2шт.

12

84041522

SPRING,8.5mm OD x 23.1mm L

2шт.

13

84433352

GEAR

1шт.

14

84433269

GEAR

3rd Gear

1шт.

15

84071622

BEARING SET,80mm ID x 86mm OD x 40mm W

1шт.

16

84071392

SHAFT

1шт.

17

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

84435240

SHIELD

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

5шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

22

84071116

FLANGED BEARING

1шт.

23

84072114

SHIM,90mm ID x 140mm OD x 0.05mm Thk

4шт.

24

84072113

SHIM,90mm ID x 140mm OD x 0.2mm Thk

2шт.

25

84072110

SHIM,90mm ID x 140mm OD x 0.5mm Thk

1шт.

26

84078053

O-RING,2mm Thk x 86mm ID, 72 Duro

1шт.

27

84334964

SET SCREW,Hex Soc, M12 x 205

1шт.

28

84011379

SEAL,12.2mm ID x 16.9mm OD x 1.5mm Thk

SEALRING

1шт.

29

750347

BEARING ASSY,65 mm ID x 100 mm OD x 23 mm

1шт.

30

84045429

OIL SEAL,65mm ID x 90mm OD x 10mm Thk

SEALRING

1шт.

31

84032297

O-RING,2mm Thk x 100mm ID, 72 Duro

1шт.

32

84071648

FLANGED BEARING

1шт.

33

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.
